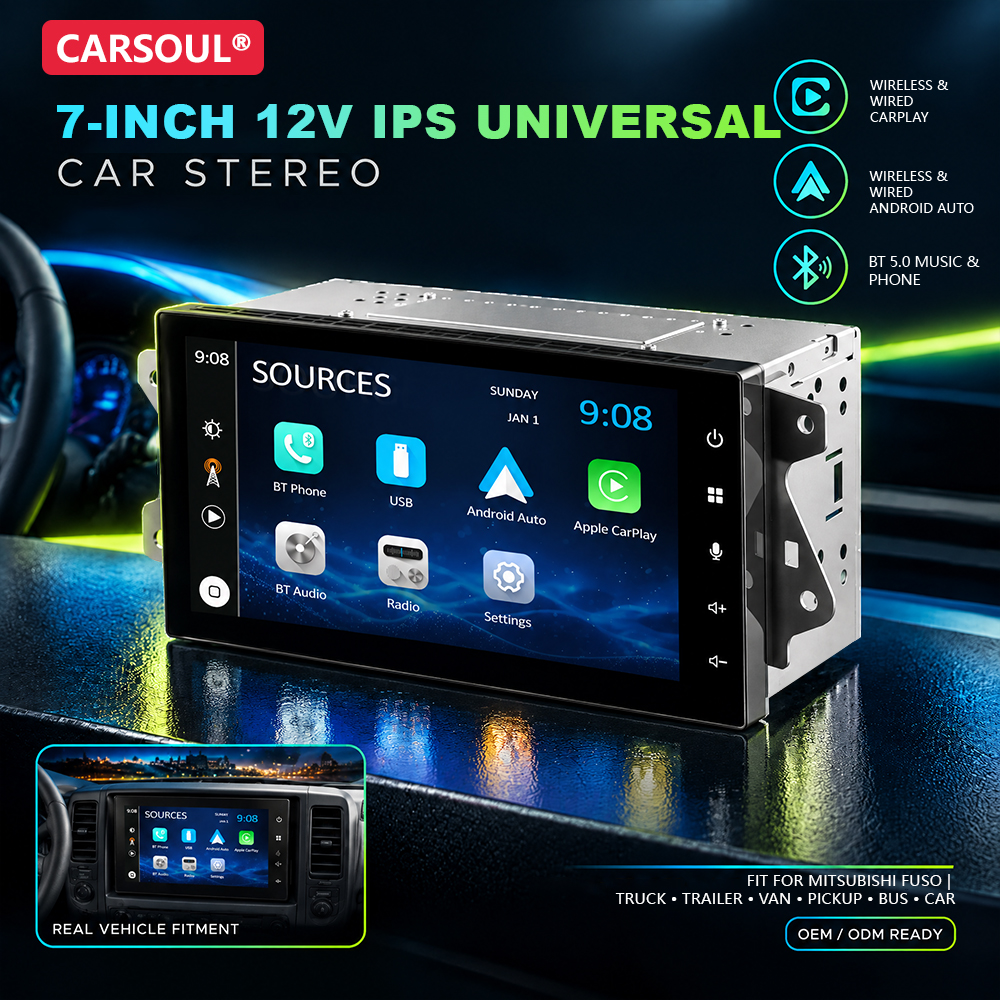

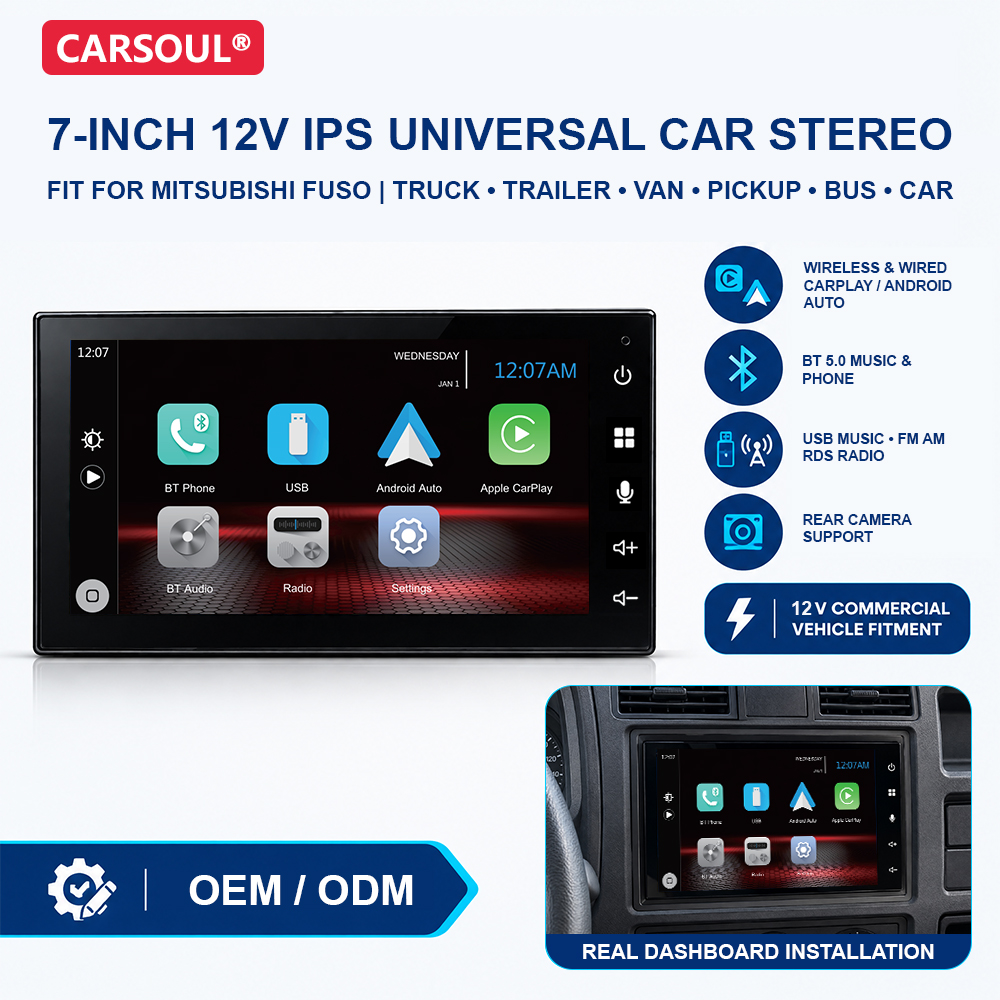

Custom 7 Inch Car Stereo for Mitsubishi FUSO Trucks — Right Hand Drive, Built to Fit

Custom built 7 inch car stereo for Mitsubishi FUSO trucks, right hand drive layout, no dashboard cutting

Panel measures 178 x 100 mm against the original single din position in the FUSO cab

Licensed Apple CarPlay and Android Auto, wireless and wired, on a 7 inch 1024 x 600 IPS capacitive touch screen

16 band equalizer with 2 x 45W output and FM / AM / RDS tuning for cab acoustics

Dual USB, GPS antenna jack, Android Auto port and reverse camera input on the rear panel

OEM / ODM: panel, harness, UI language, boot animation, logo and packing built to your programme

Inquire Now Next Product

Product Overview

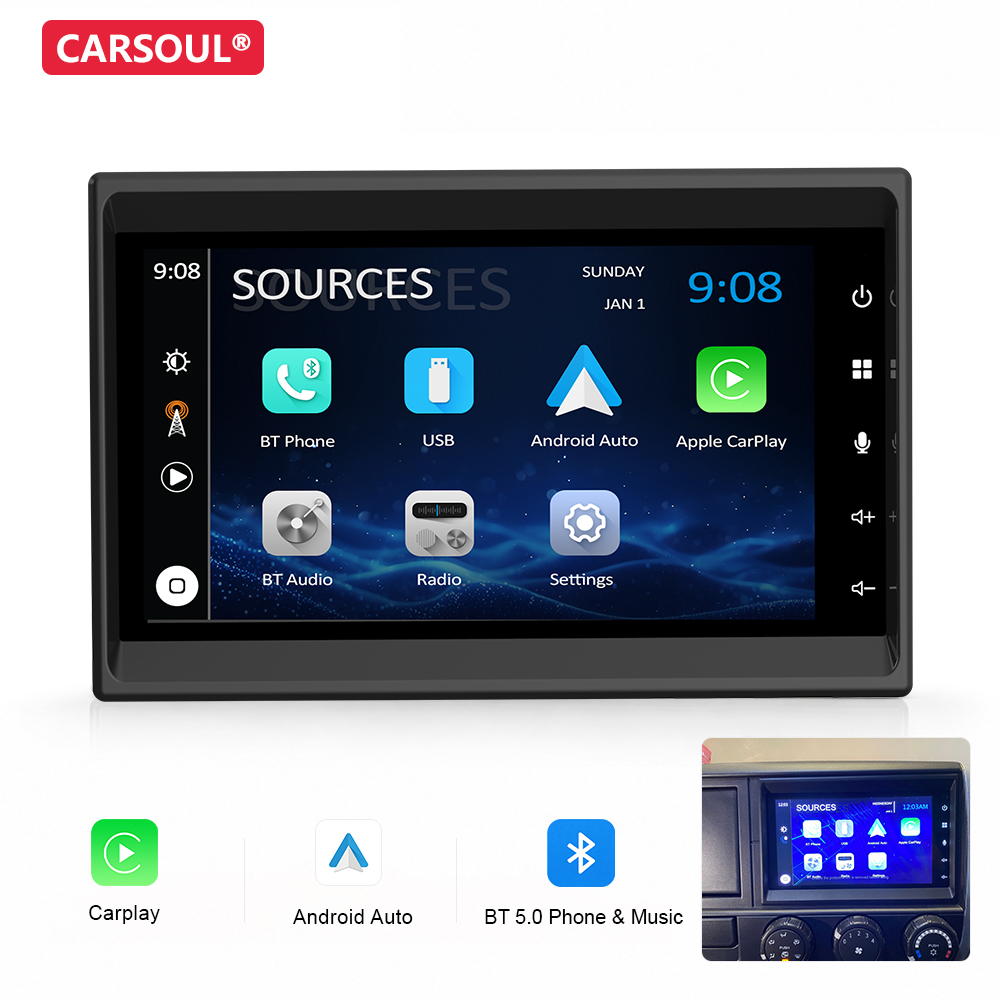

This 7 inch car stereo is a dedicated head unit built for the Mitsubishi FUSO truck cab rather than a universal fascia part. It runs a licensed Apple CarPlay and Android Auto stack in both wireless and wired mode, drives a 7 inch IPS capacitive touch screen at 1024 x 600, and is built on a closed Linux system. The front panel measures 178 x 100 mm and takes the single din position beside the original screen, so the unit sits inside the factory dashboard instead of sitting on top of it.

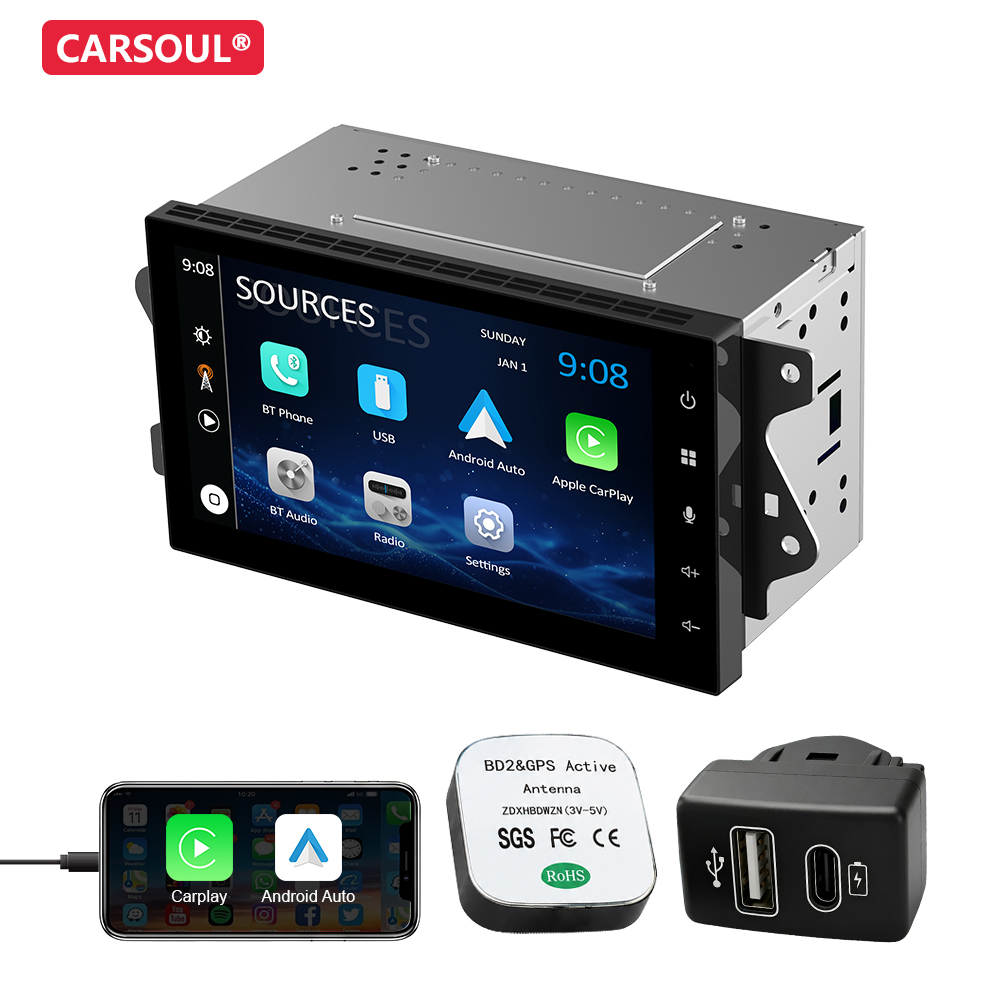

Behind the screen the unit carries a 16 band equalizer with 2 x 45W output, Bluetooth 5.0 with an internal microphone, and FM 87.5 to 108 MHz with AM and RDS. Two USB outlets are fitted: Type-A for phone projection and Type-C for media, alongside a GPS antenna jack, an Android Auto port, a main wire harness, a reverse camera input and an FM / AM antenna jack. Send us your target vehicle, model year and market, and we build the panel, bracket, harness, user interface language and packing around your programme.

Core Specs Card

Item	Specification
Product	7 inch car audio, dedicated for Mitsubishi FUSO truck
Operating voltage	DC 12V, internal power supply
Operating system	Linux, closed system
Main functions	Apple CarPlay + Android Auto, BT Phone, BT Audio, USB media, Radio, Settings
Display size	7 inch
Display type	Capacitive touch screen IPS
Screen resolution	1024 x 600
Panel dimension (W x H)	178 x 100 mm
Installation	Single din position in the factory dashboard, right hand drive

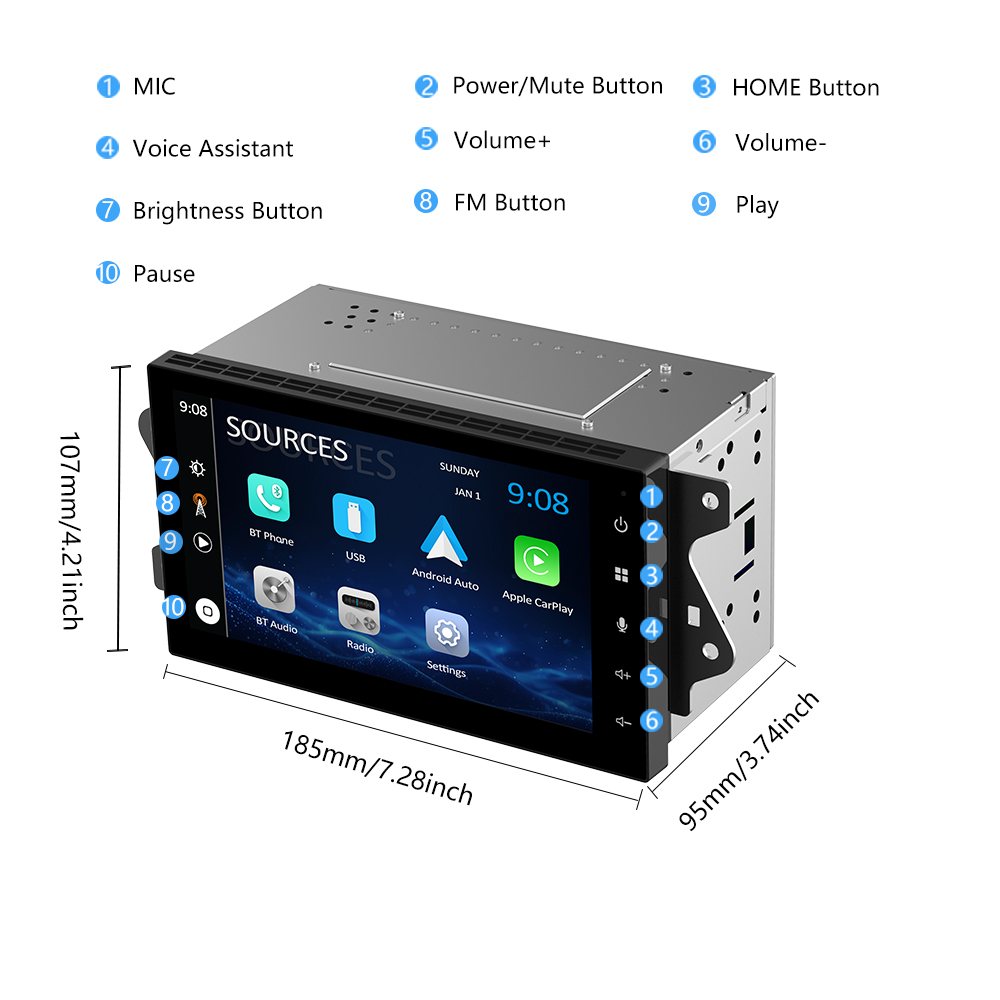

Front panel keys	MIC, display brightness, FM switch, Power / Mute, HOME, Voice Assistant / Play Pause, Volume+, Volume−
Apple CarPlay	Wired and wireless, licensed
Android Auto	Wired and wireless, licensed
Bluetooth	Module 5.0, hands free calling and music streaming
Microphone	Internal, built in
Radio	Tuner FM / AM / RDS, FM 87.5–108 MHz, LOC / DX switching, 6 presets
Equalizer	16 band
Max power output	2 x 45W
USB ports	Type-A (CPAA data and charging) + Type-C (media)
Reverse camera input	Supported
Rear connections	USB Type-A, USB Type-C, GPS antenna jack, Android Auto port, main wire harness, reverse camera input, FM / AM antenna jack
Language	English (other languages customizable)
Software licence	Permanent licence, no expiry date
Software behaviour	Runs offline and standalone, no forced update required, no slowdown without updates

Four Core Advantages

A Panel Built for the FUSO Cab, Not a Universal Fascia

The front panel measures 178 x 100 mm and matches the single din position in the Mitsubishi FUSO dashboard, so the unit sits in the factory opening beside the original screen. Six keys on the front panel cover microphone, display brightness, FM switching, power and mute, home, voice assistant, volume up and volume down, so a driver can work the unit without looking down. The layout is right hand drive, matching the cab it was developed for.

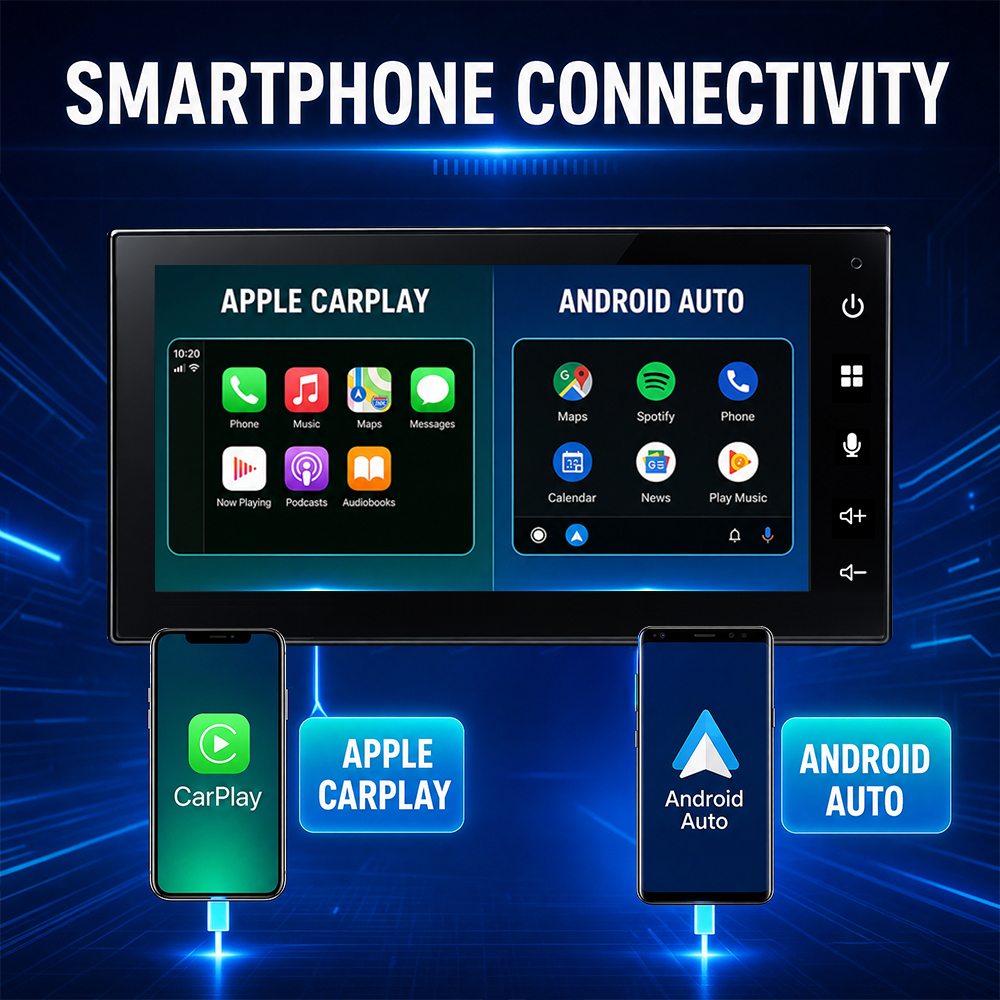

Licensed Wireless CarPlay and Android Auto

Both Apple CarPlay and Android Auto are licensed on this head unit and run wireless or wired. The driver pairs once over Bluetooth and WiFi, opens the CarPlay or Android Auto entry from the sources screen, and navigation, calls, messaging and streaming music appear on the 7 inch display with no cable across the cab. The quick select sources row keeps the three most used inputs one tap away.

Audio Tuned for a Working Cab

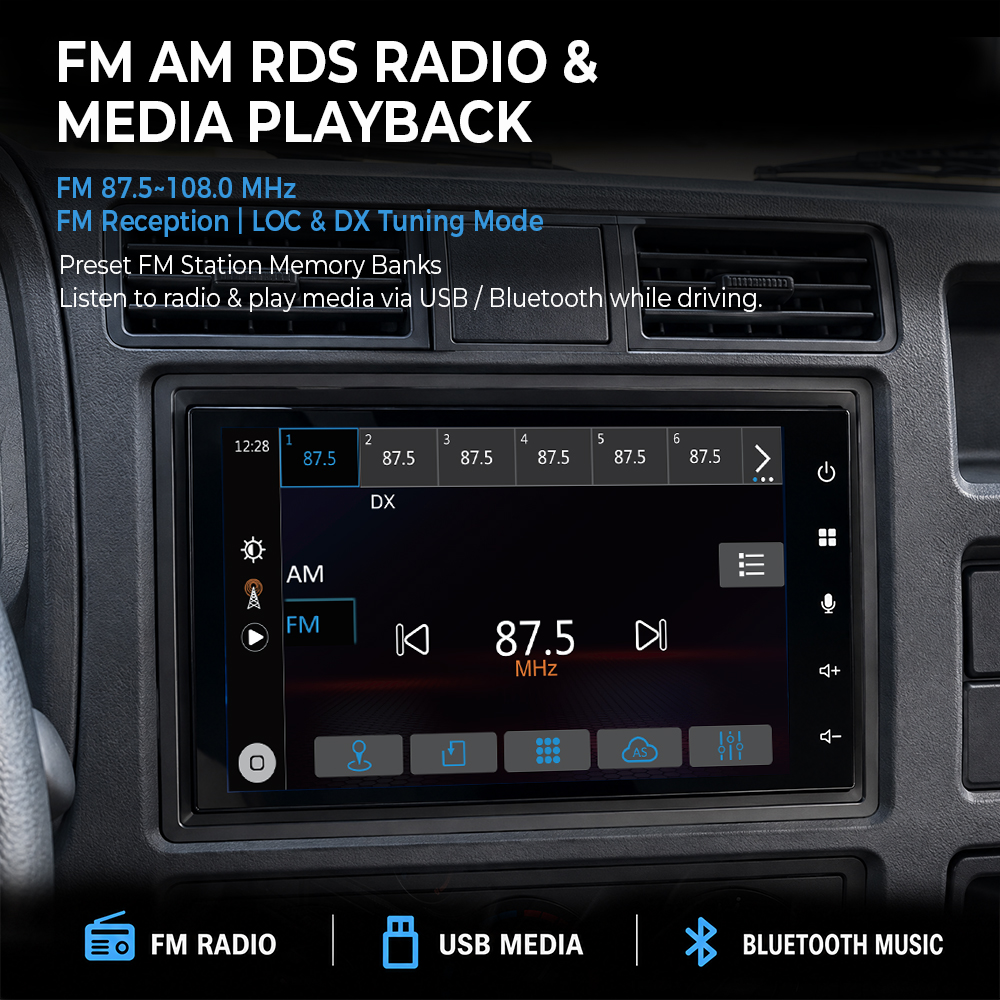

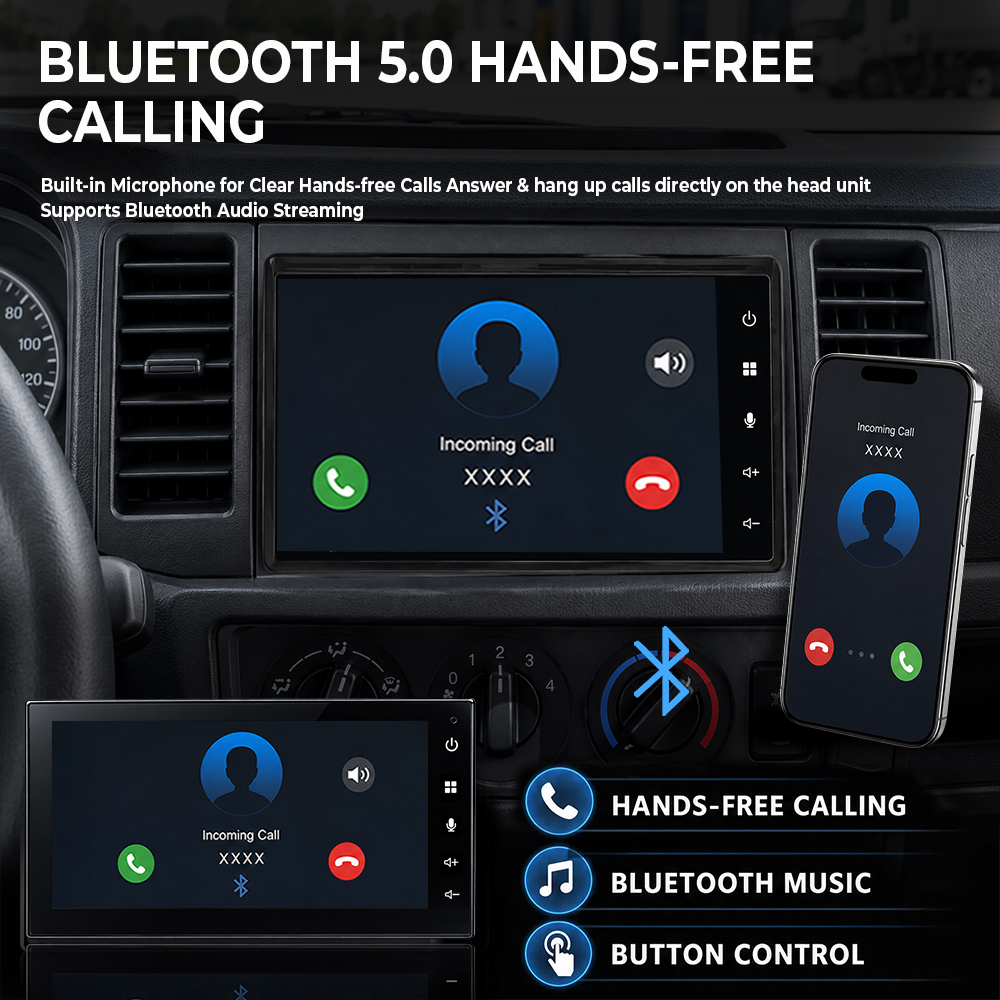

A 16 band equalizer feeds 2 x 45W of output, which is enough headroom for a truck cab without an external amplifier. Bluetooth 5.0 handles hands free calling and music streaming through the internal microphone, while the tuner covers FM 87.5 to 108 MHz with AM and RDS, LOC and DX switching, and six presets for stations that change as the truck crosses a region.

Software You Do Not Have to Maintain

This unit runs a closed Linux system under a permanent licence with no expiry date, issued in the company statement dated 12 January 2026. It runs offline and standalone with no dependency on cloud services, and does not slow down or lose core functions when it is not updated. For a fleet customer that removes an entire class of after sales complaints.

Why Source This Unit

Reason	Benefit for your business
Already proven on the FUSO platform	This unit is the delivered Mitsubishi FUSO programme, so the panel, bracket and harness are validated on a real cab rather than drawn on paper
Built around your vehicle	Send your target model and year and we develop the panel, bracket and harness to that dash opening instead of shipping a universal fascia kit
Licensed phone integration	Licensed wireless and wired CarPlay and Android Auto, with no third party dongle in the box
Software statement in writing	A signed statement covering permanent licence, offline operation and no slowdown without updates, dated 12 January 2026
Complete installation package	Dual USB, GPS antenna jack, Android Auto port, wire harness, reverse camera input and FM / AM antenna jack on one rear panel

Contact Us

Feature	This custom FUSO head unit
Fitment	Panel, bracket and harness developed to the FUSO dash opening
Driving position	Right hand drive layout matched to the cab
Installation	Connects through the original harness layout, reversible
CarPlay / Android Auto	Licensed Apple CarPlay and Android Auto, wireless and wired
Audio tuning	16 band equalizer with 2 x 45W output
Software longevity	Closed Linux system, permanent licence, runs offline, no slowdown without updates
Camera package	06A96 AHD 720P IP68 camera built to match this head unit
Branding and packing	Logo, boot animation, UI language, harness and packing

Feature	Generic universal head units
Fitment	Universal body, needs a fascia kit and bracket work
Driving position	Often one layout sold worldwide
Installation	Often requires cutting or splicing the factory harness
CarPlay / Android Auto	Dongle based or unlicensed in many cases
Audio tuning	Fixed presets or a basic 3 band control
Software longevity	Depends on third party updates and online services
Camera package	Camera bought separately and adapted
Branding and packing	Fixed

Truck Importers and Distributors

Add a vehicle specific 7 inch car stereo to your catalogue for the FUSO trucks you already sell. The panel, bracket and harness are developed to the model you order, and neutral or branded packing lets you rebrand for your local channel.

Truck Audio Installers and Conversion Shops

The matched 178 x 100 mm panel and socket to socket wiring mean less installation time and no adapter gaps or cut loom. The original single din position is reused, so the customer gets a clean factory style upgrade with the reverse camera input ready for the 06A96 camera.

Fleet Operators and Logistics Companies

The closed Linux system runs offline under a permanent licence and does not slow down without updates, which keeps a working fleet out of the workshop. Standardise across a fleet on one head unit family, one harness, one camera and one supplier.

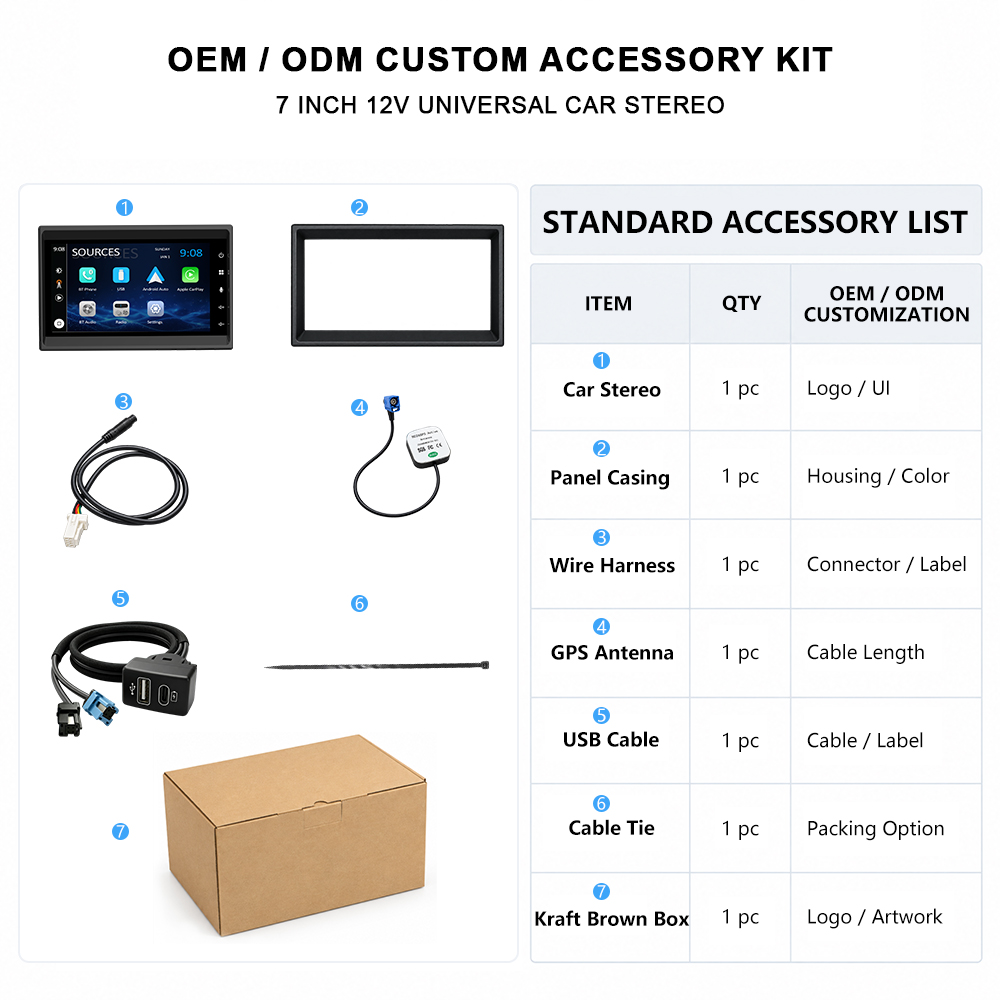

Customizable Items

Front panel design and colour, matched to your dashboard

Mounting bracket, developed to your dash opening

Wiring harness: connector type, pin definition, cable length

Boot logo, boot animation and startup warning text

User interface language and home screen layout

Packing: box artwork, manual, label, accessory configuration

Panel dimension and fascia adaptation for other truck models on the same platform

Customization Process

Send vehicle details — Share your vehicle model, model year, driving position, market and expected volume.

Engineering evaluation — We review the dash opening, single din position, connector layout and electrical system, and reply within 24 hours with a fitment assessment.

Quotation and sample — We provide pricing, MOQ and a sample timeline.

Sample approval — Panel, bracket, harness, UI and packing confirmed on a physical sample, with a cab fitment check where required.

Bulk production — Scheduled manufacturing with QC checkpoints and a dedicated account contact.

Shipment and after sales — FOB Shenzhen, CIF and DDP terms can be discussed, with warranty support.

Contact Us

Certifications and Backing

Signed software statement — confirms a permanent licence with no expiry date, offline standalone operation, and no slowdown or loss of core audio functions when the system is not updated.

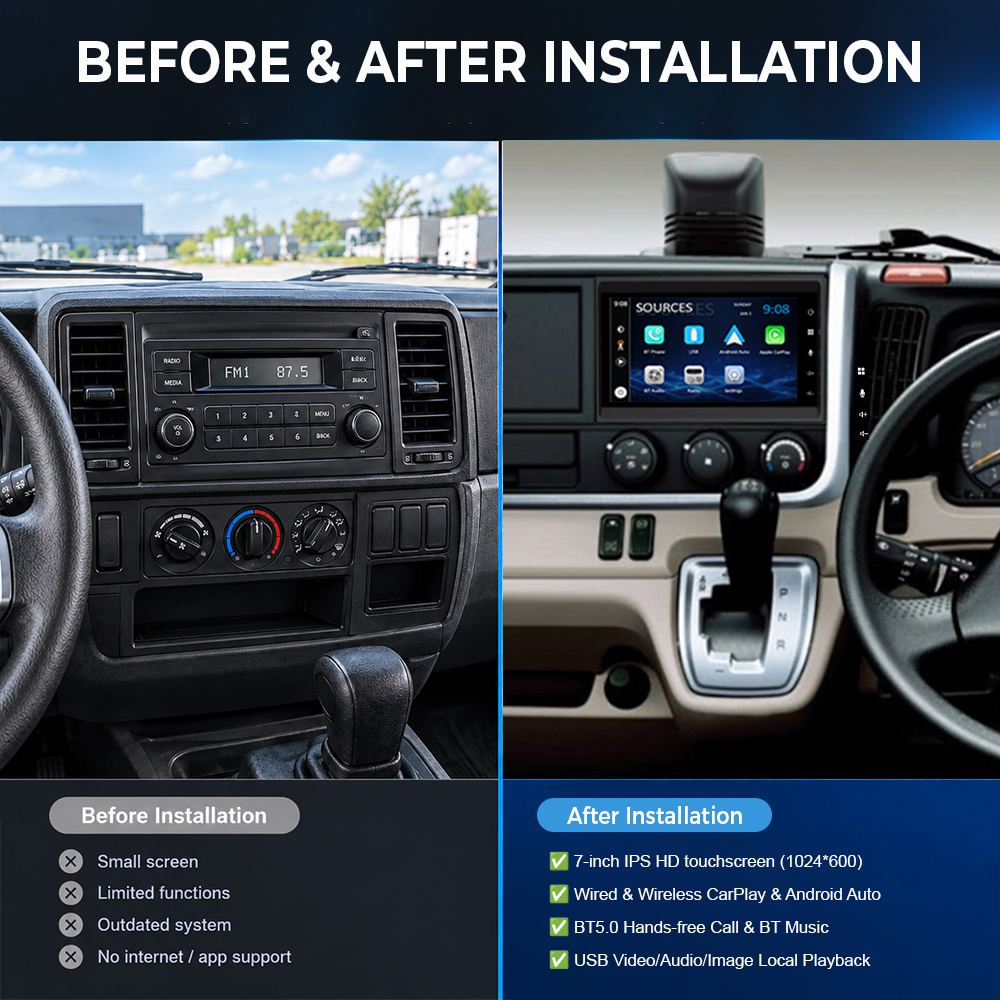

Proven on vehicle — This head unit is the delivered Mitsubishi FUSO programme, installed in a right hand drive cab with the original screen retained beside it.

Shenzhen OEM manufacturer — Specialised in vehicle specific car audio and automotive electronics.
Quality control — Pre shipment functional testing on display, Bluetooth, USB, radio, CarPlay and Android Auto connection, and reverse camera input.
Warranty support — Warranty terms and after sales coverage are confirmed per order before shipment.

Ready to add this 7 inch head unit to your FUSO programme?

Get a tailored quotation, sample schedule and vehicle fitment evaluation.

Send us your target vehicle, model year, driving position and estimated volume. Our engineering team replies within 24 hours.

Contact Us

FAQ

Q1: Will this unit fit my Mitsubishi FUSO truck?

A: The panel measures 178 x 100 mm and takes the single din position in the FUSO cab, beside the original screen. Send us your vehicle model and model year and we reply with a fitment assessment within 24 hours.

Q2: Is it available in a left hand drive version?

A: This unit is built in a right hand drive layout for the FUSO programme. Left hand drive brackets are developed per programme, so tell us your cab layout when you inquire.

Q3: Is the screen 7 inch?

A: Yes. The unit is a 7 inch IPS capacitive touch screen at 1024 x 600. The LCD panel diagonal is sometimes quoted as 6.8 inch by LCD physical measurement, but the product is specified and sold as a 7 inch unit.

Q4: Is CarPlay and Android Auto wireless or wired?

A: Both. The unit is licensed for Apple CarPlay and Android Auto and runs in wireless or wired mode.

Q5: Does the installation cut the original wiring?

A: The unit connects through the existing harness layout in the FUSO cab, and the original single din position is reused, so the installation is reversible.

Q6: Will the system slow down if it is not updated?

A: No. This is covered in writing in the company statement dated 12 January 2026: the unit runs offline and standalone, the software licence has no expiry date, and it will not slow down or lose core audio functions when it is not updated.

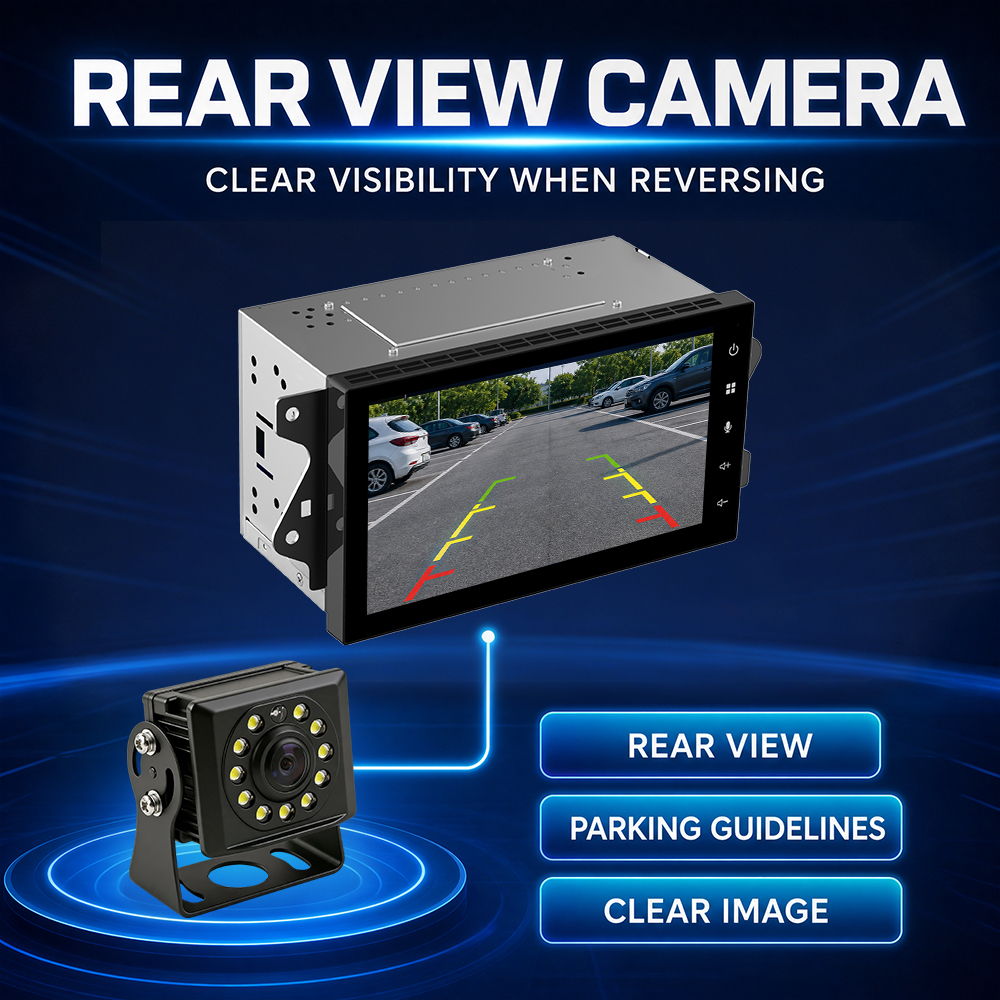

Q7: Does the unit come with a reverse camera?

A: The unit has a reverse camera input. The matching 06A96 AHD 720P camera, IP68 rated for DC 12V to 24V, can be supplied with the head unit so a complete cab kit ships from one supplier.

Q8: Can we put our own logo on the unit?

A: Yes. Logo on the front panel and on the box, boot animation, startup text, UI language and packing artwork are all customizable.

Q9: Can you build the same platform for a different truck model?

A: Yes. The panel, bracket, harness, UI language and packing are developed per programme. Send us your vehicle model and we will tell you within 24 hours whether we can build it on this platform.

Q10: Are you a manufacturer or a trading company?

A: We are an OEM manufacturer in Shenzhen, China, focused on vehicle specific car audio and automotive electronics.
