The MinVision 360° Panoramic Surround View Imaging Safety Driving Assistance System is specifically designed for large commercial vehicles such as trucks, buses, and emergency vehicles, aiming to solve the pain point of blind spots in large vehicles. Through advanced image fusion technology, the system achieves a true 360° panoramic bird's-eye view, completely eliminating blind spots and providing real-time monitoring without blind spots, significantly improving driving safety and operational efficiency.
Product Introduction
The MinVision 360° Panoramic Surround View Imaging Safety Driving Assistance System is specifically designed for large commercial vehicles such as trucks, buses, and emergency vehicles, aiming to solve the pain point of blind spots in large vehicles. Through advanced image fusion technology, the system achieves a true 360° panoramic bird's-eye view, completely eliminating blind spots and providing real-time monitoring without blind spots, significantly improving driving safety and operational efficiency.
The system adopts a modular design, making installation convenient and the calibration process simple and efficient, greatly shortening vehicle deployment time. It can also be seamlessly integrated with radar detection systems to build a multi-layered active safety protection system, providing drivers with all-round environmental perception and effectively preventing collisions.
Say goodbye to blind spot hazards and take control of the entire field of vision! Choosing MinVision means choosing reliable safety assurance—whether navigating city streets or complex road conditions, it provides drivers with clear and comprehensive environmental perception, elevating driving safety to a new level, and is the ideal solution for intelligent safety upgrades of commercial vehicles.

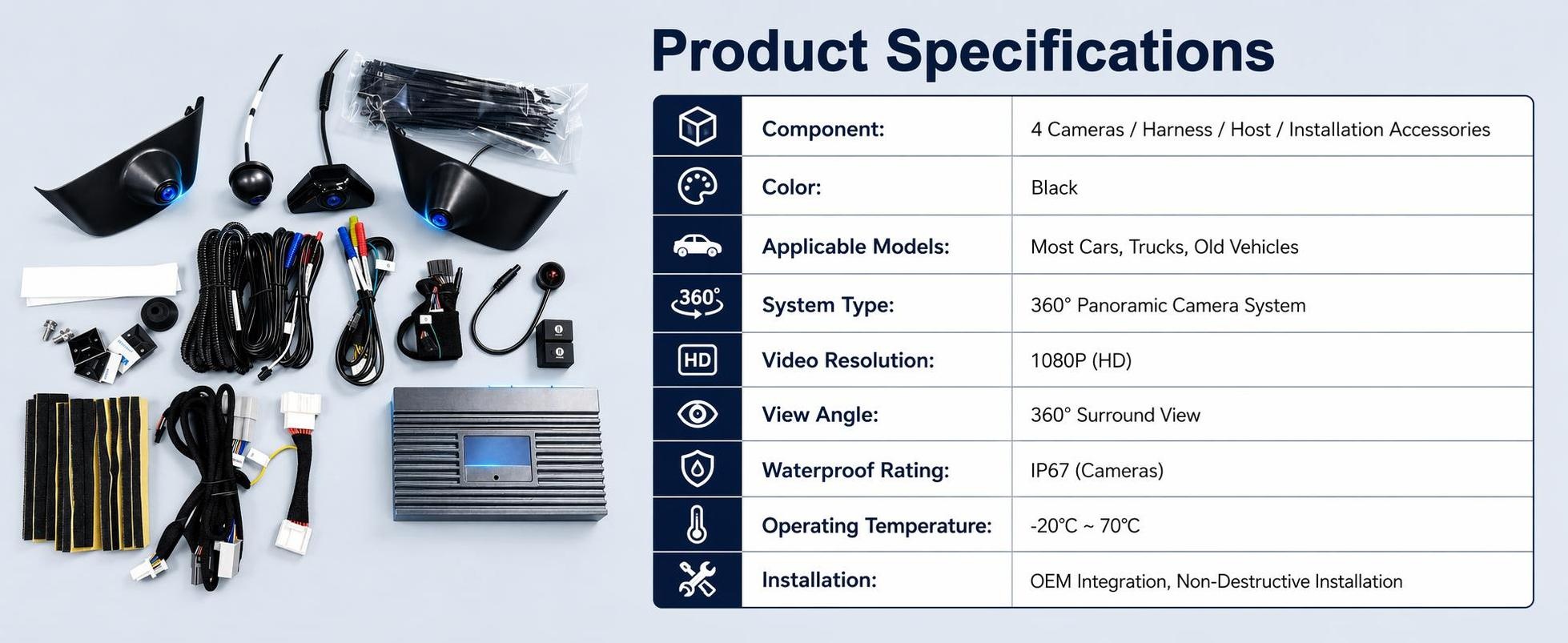

Core Specs Card

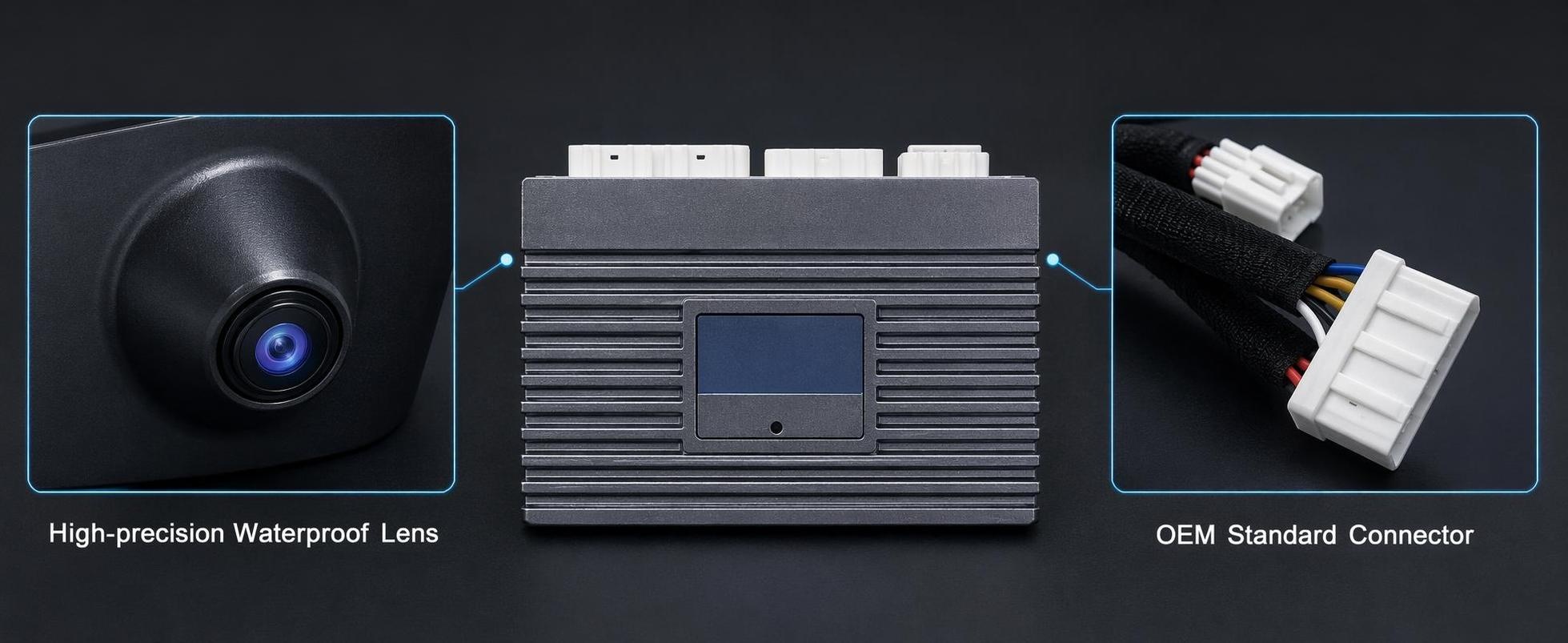

Core ECU
Hardware: Quad-core A53 + Mali G31 | 1GB LPDDR4 + 8GB EMMC (64G USB expandable)
Voltage: 12~24V DC | Quiescent current ≤10mA | Working current ≤800mA
Start-Up: Cold start ≤15S | Hot start ≤500ms | 25fps@720P
Durability: -20℃~+70℃ working temp | Zinc alloy shell (strong heat dissipation)
Output: AV/HDMI (no decoder required) | Standard AHD 720P

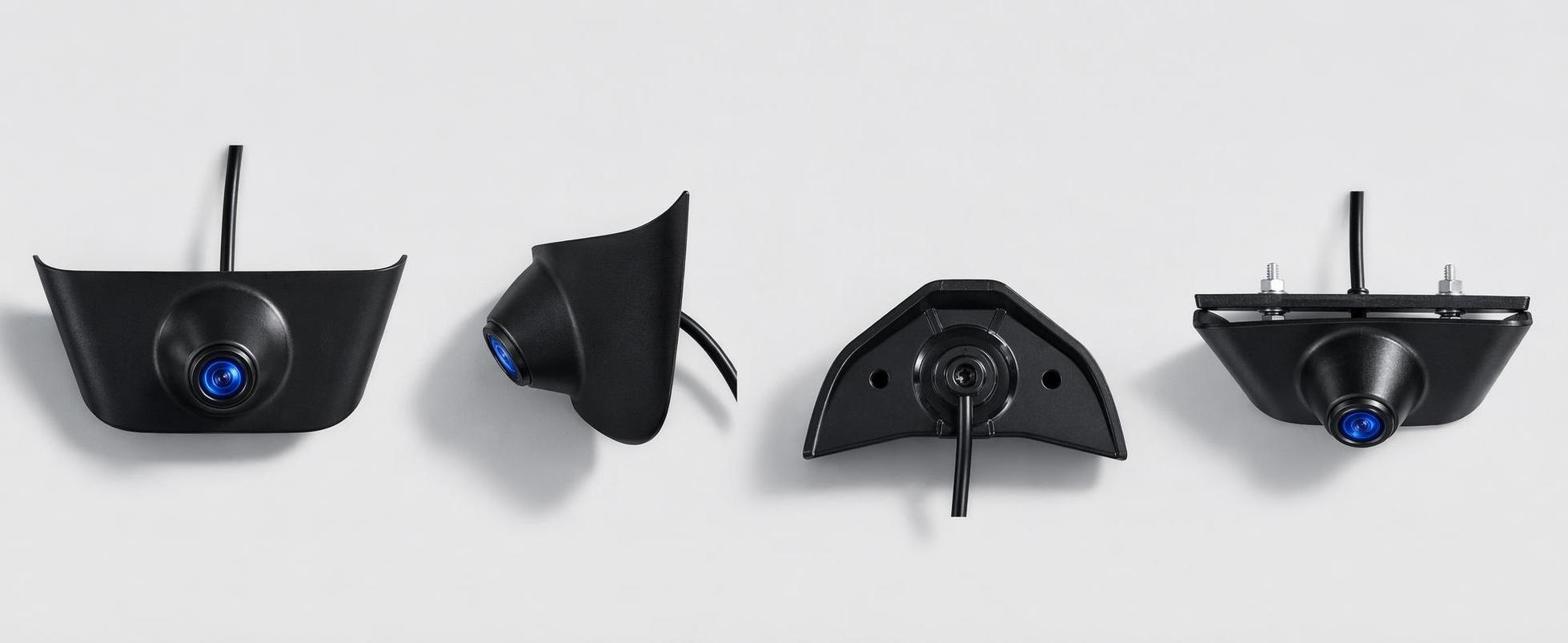

2.0MP Panoramic Cameras (CAM-WGJ012/013)
2.0MP Panoramic Cameras (CAM-WGJ012/013)
HD Imaging: 1/2.9" CMOS | 1920×1080P | 25/30fps PAL
View Angle: 210° horizontal + 123° vertical (blind spot free)
Image Performance: 90dB WDR | 0.5Lux low illumination | Full-color day/night
Protection: IP67 waterproof/dustproof | -20℃~+70℃ working temp
Power: 5V/120mA (low power consumption)
System Core Advantages

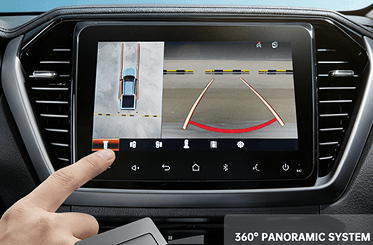

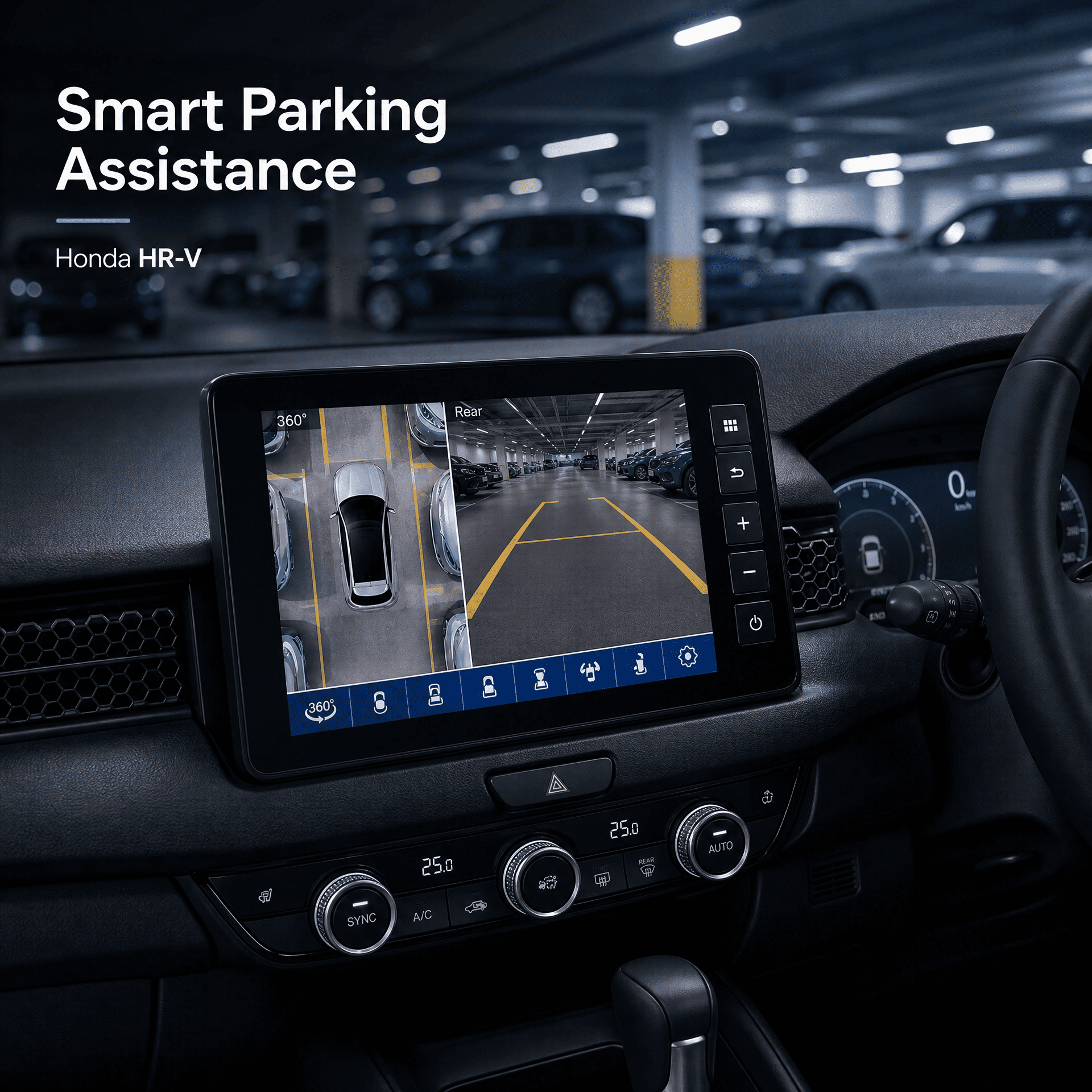

4-channel 1080P input | Body transparent mode | Bird’s eye view
CAN/AHD interfaces | 12/16/8PIN vehicle-specific ports
Reverse connection/ESD/overvoltage protection (all-round stability)

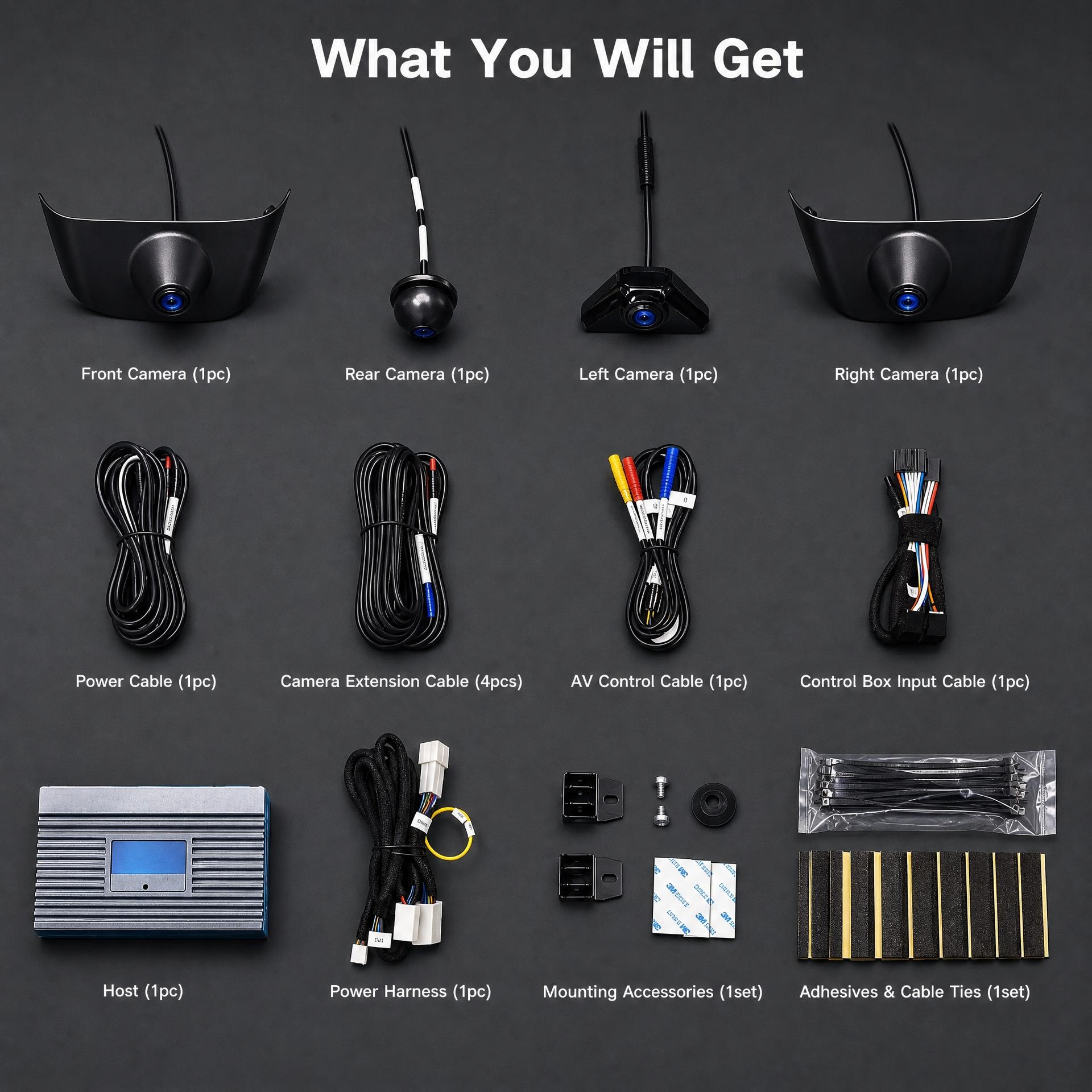

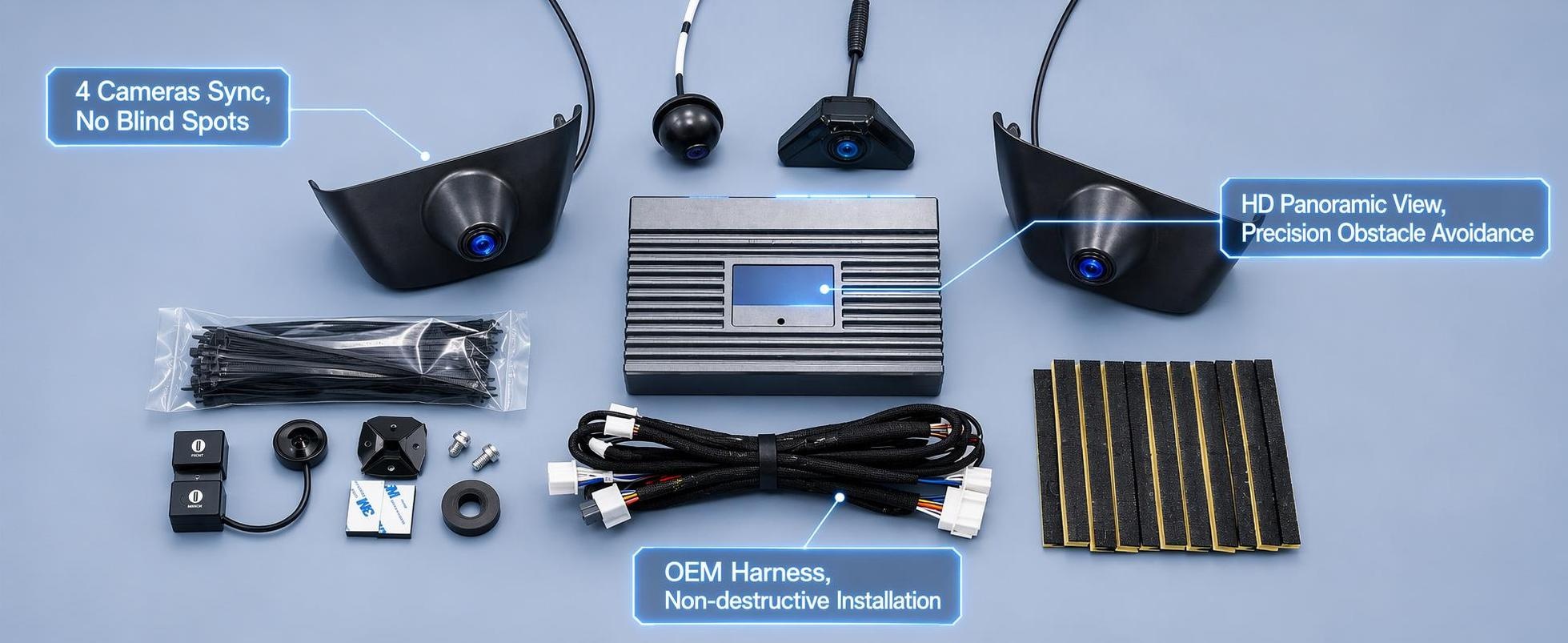

Harness & Accessories
4P BMW head harnesses (Front3.5m/Left2.2m/Right3.5m/Rear7m)
Full mounting kit (bracket/button/tape/tie/EVA pad) | One-stop installation

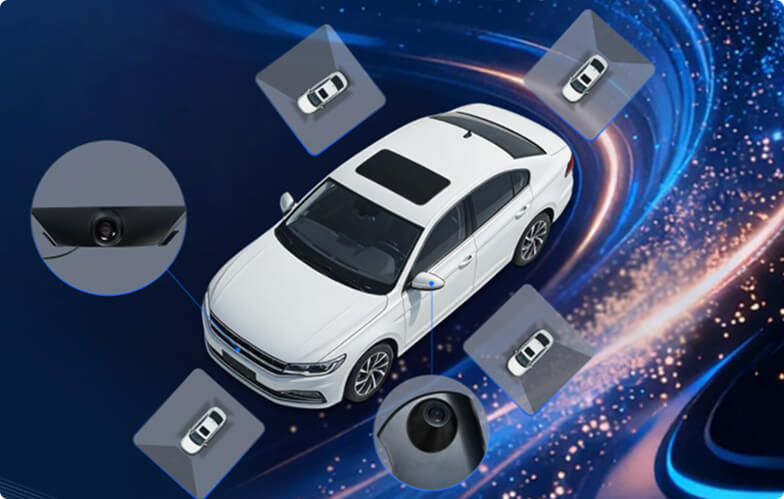

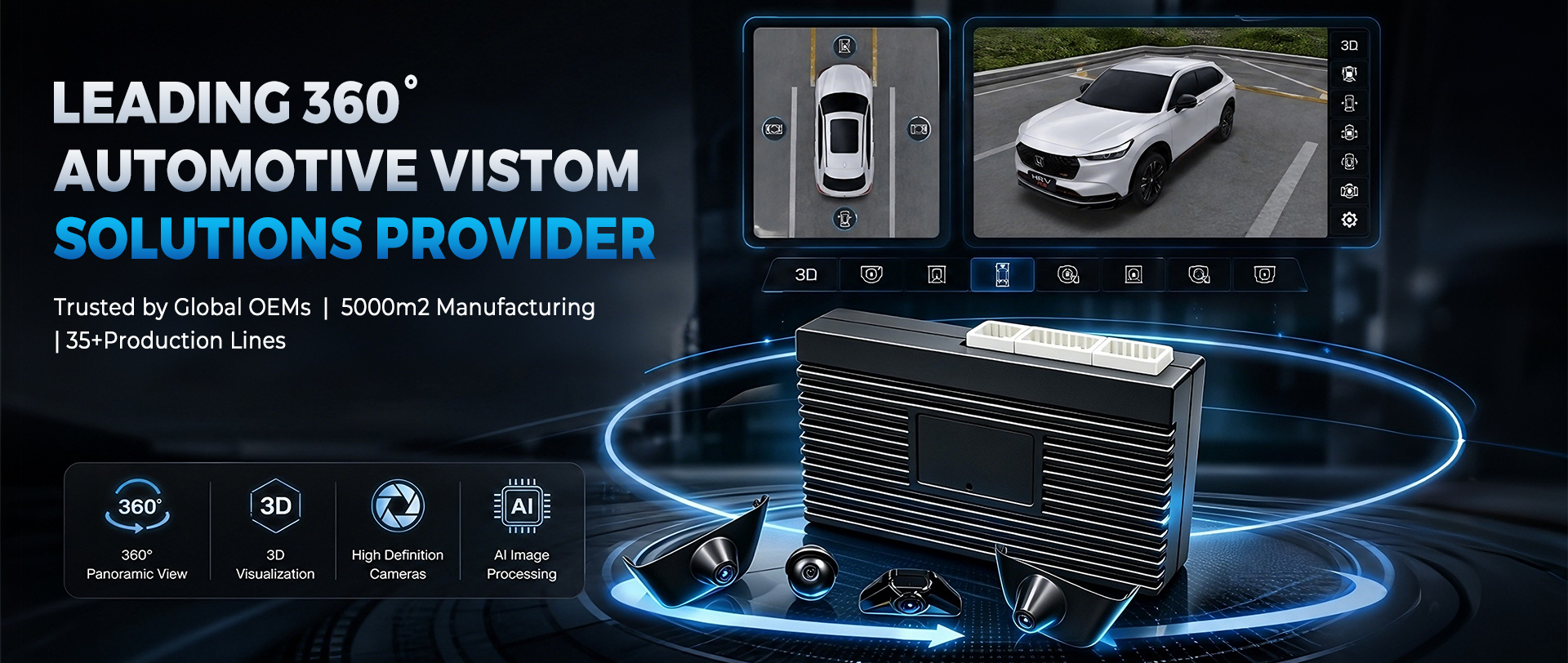

360° Panoramic Surround View System
Core Model: CS-T1 2D | OEM/ODM Customization Supported

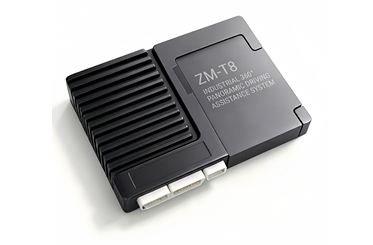

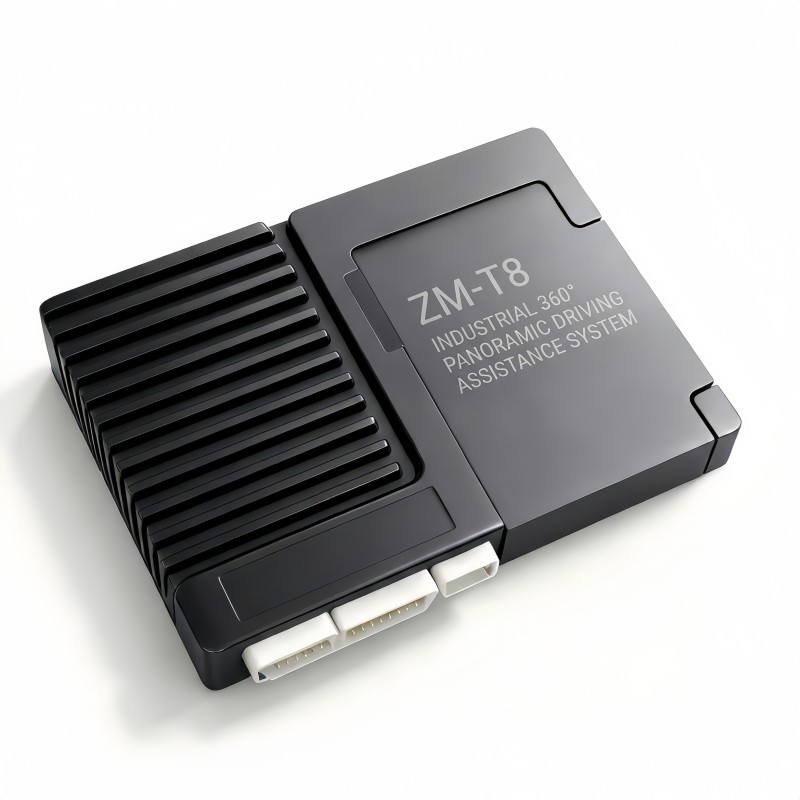

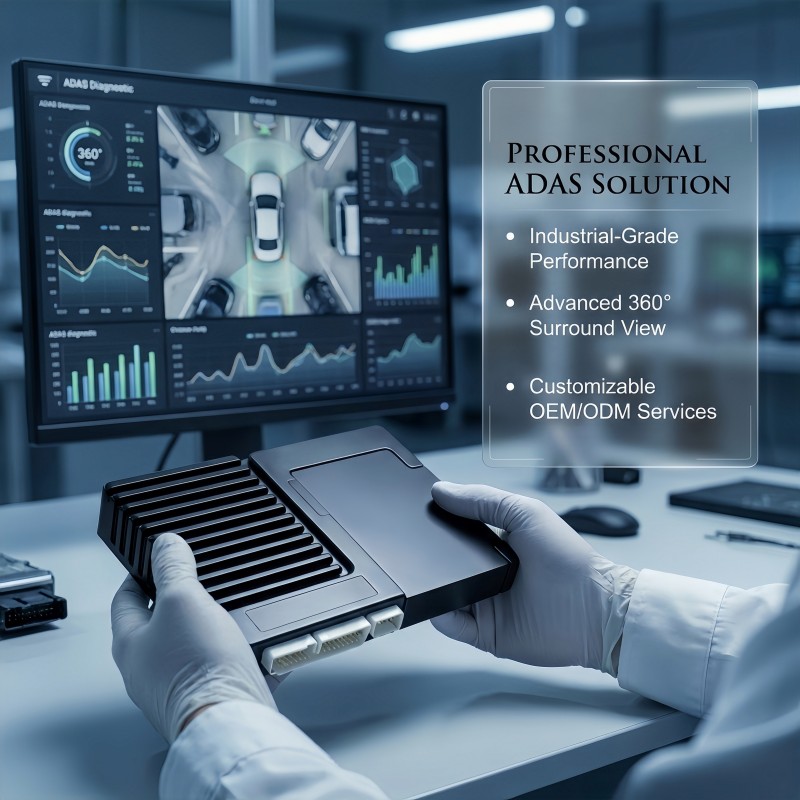

Core ECU Highlights
Quad-core A53 + Mali G31, 1GB + 8GB RAM, expandable up to 64GB via USB flash drive
12~24V wide-voltage motor, static current ≤10mA, low power consumption and stable operation
Cold start ≤15S, hot start ≤500ms, instant image display
Zinc alloy sandblasted shell, strong aluminum alloy, can be installed anywhere in the vehicle
Decoder board, direct output AV/HDMI signals, AHD 720P standard
-20℃~+70℃ operating temperature range, resistant to 90% RH high humidity
2MP Panoramic Camera
1/2.9" CMOS, 1920×1080P HD imaging, 25/30fps frame rate
Horizontal 210° + Vertical 123° ultra-wide angle, completely eliminating blind spots
90dB Wide dynamic range, 0.5Lux low illumination, full-color day and night sound
IP67 waterproof, stable vehicle operation in complex traffic environments
5V/120mA low power consumption, strong weather resistance from -20℃ to +70℃
System Core Functions and Protection
4-channel 1080P camera simultaneous input, dual modes of top/bottom transparent + bird's-eye view
Standard CAN input/AHD output, 12/16/8PIN dedicated transport interface
Triple protection against reverse wiring, electrostatic discharge, and overvoltage, ensuring safer vehicle use
Linux system, multi-protocol board configuration, compatible with different product requirements

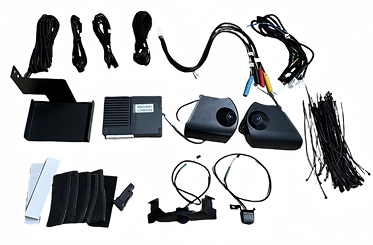

Customized Wiring Harnesses & Purchased Accessories
4P BMW connector, dedicated extension cables for front 3.5m / left 2.2m / right 3.5m / rear 7m
Color-coded wiring harnesses for easy connection, equipped with different adapter installation distances
Includes brackets / buttons / Velcro / cable ties / EVA pads, all in one place
Installation accessories, to be purchased separately, ready to use immediately.
Key Selling Points
CS-T1 2D | OEM/ODM Customization | Suitable for Passenger Cars/Trucks/Buses/Logistics Fleets Quad-core HD Panoramic | 12-24V Wide Voltage | IP67 Waterproof | Transparent Body + Bird's-eye View Dual Modes Lightning-fast Start | Triple Protection | One-stop Installation Kit
Core Parameters
Quad-core A53 + Mali G31, 1GB + 8GB RAM, 64GB Expansion
12-24V Wide Voltage, Cold Start ≤15S/Hot Start ≤500ms
Zinc Alloy for Strong Heat Dissipation, Weather Resistant from -20℃ to +70℃, Direct Output AV/HDMI/AHD
2.0MP Camera
1080P HD, Horizontal 210° + Vertical 123° Ultra-wide Angle
90dB WDR, 0.5Lux Low-light Full-color, IP67 Waterproof
5V low power consumption, stable operation from -20℃ to +70℃
Core Advantages
4-channel 1080P input, dual vision mode, compatible with all vehicle models
CAN/AHD interface, triple protection, easy wiring and installation
Custom-length BMW connector wiring harness, color-coded, suitable for long vehicle bodies
Complete set of installation accessories, high efficiency for bulk installation, no additional procurement

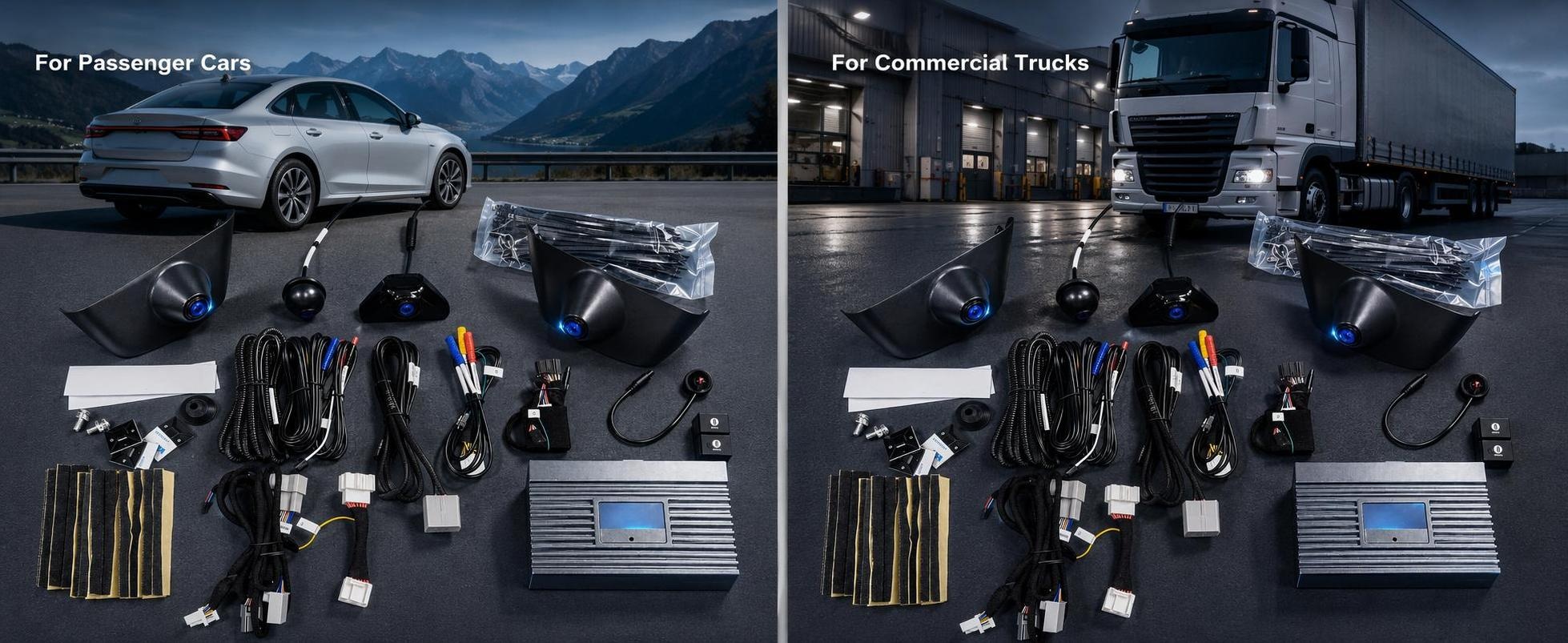

Application Scenarios

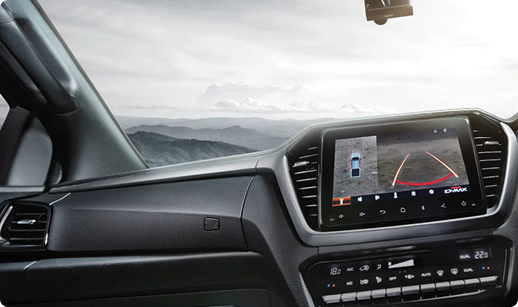

Passenger vehicles

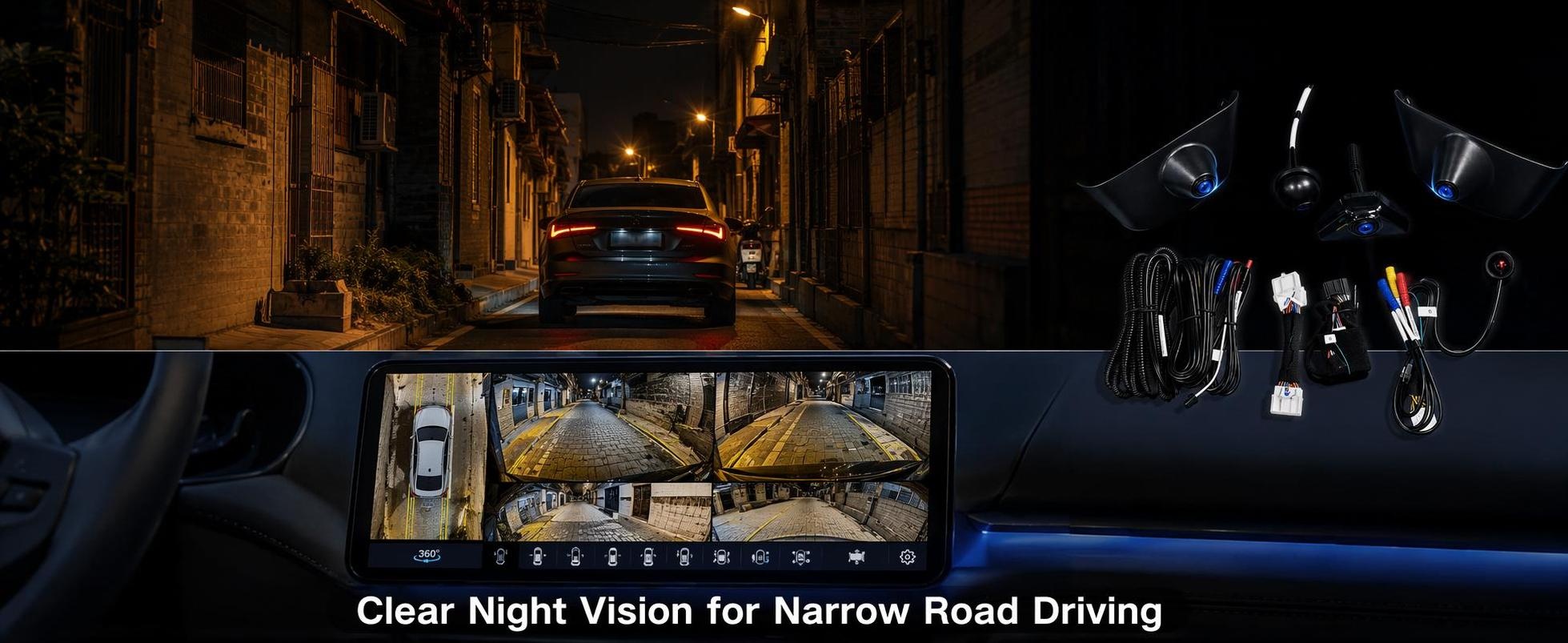

No blind spots in narrow roads/reversing, improving driving safety
Trucks/Buses
Panoramic coverage of large vehicle bodies, avoiding blind spots when turning/reversing
Logistics fleets
Standardized bulk adaptation, reducing operational safety risks
Customization Service
Supports OEM/ODM, matching specific protocols for each vehicle model as needed Bulk purchases can be customized with packaging/accessories, providing technical and after-sales support
E-mark, CE, FCC, RoHS
Suitable for global deployment of passenger car/truck/bus/logistics fleets, with full compliance support including E-mark/CE/FCC/RoHS certifications.
Targeting major foreign trade markets such as Europe and the United States, all products are fully certified with E-mark, CE, FCC, and RoHS, ensuring unimpeded market access.
For bulk supply to foreign trade clients, the presence of all fourE-mark/CE/FCC/RoHS certificates ensures smoother customs clearance.a
OEM/ODM customization
Supports deep OEM/ODM customization, matching exclusive protocols and appearances for each vehicle model as needed.
Bulk purchases can be customized with packaging and accessories to meet the brand and shipping needs of foreign trade clients.
Provides professional technical guidance and overseas after-sales support, ensuring worry-free foreign trade cooperation.
A fully certified product system ensures stable global supply and is suitable for long-term foreign trade partnerships.
Packaging and Transportation
Supports deep OEM/ODM customization, matching vehicle models/appearances as needed, and customizable export labels.
Bulk purchases come standard with reinforced export-standard packaging, shock and pressure resistant, suitable for sea/air/land transport.
Compliant export packaging and labeling, facilitating faster customs clearance and ensuring safe delivery of goods overseas.
Professional technical guidance + overseas after-sales support, export packaging + full certification, worry-free foreign trade cooperation.
