10.25" Android 13 Head Unit for Lexus CT 2012-2020 with Wireless CarPlay and OEM Fit

- Dedicated 10.25" panel for Lexus CT 2012-2020 - factory-fit, non-destructive installation

- Runs Android 13 on Qualcomm QCM6125 8-core, 8GB RAM + 128GB ROM

- Wireless CarPlay and Android Auto built in, no dongle needed

- Keeps the original Lexus system alive - switch between Android and OEM screen at will

- Supports factory camera (CVBS), steering wheel buttons and original amplifier

- Matched to knob-control, mouse-control and non-OEM-screen CT cars

Inquire Now

Product Overview

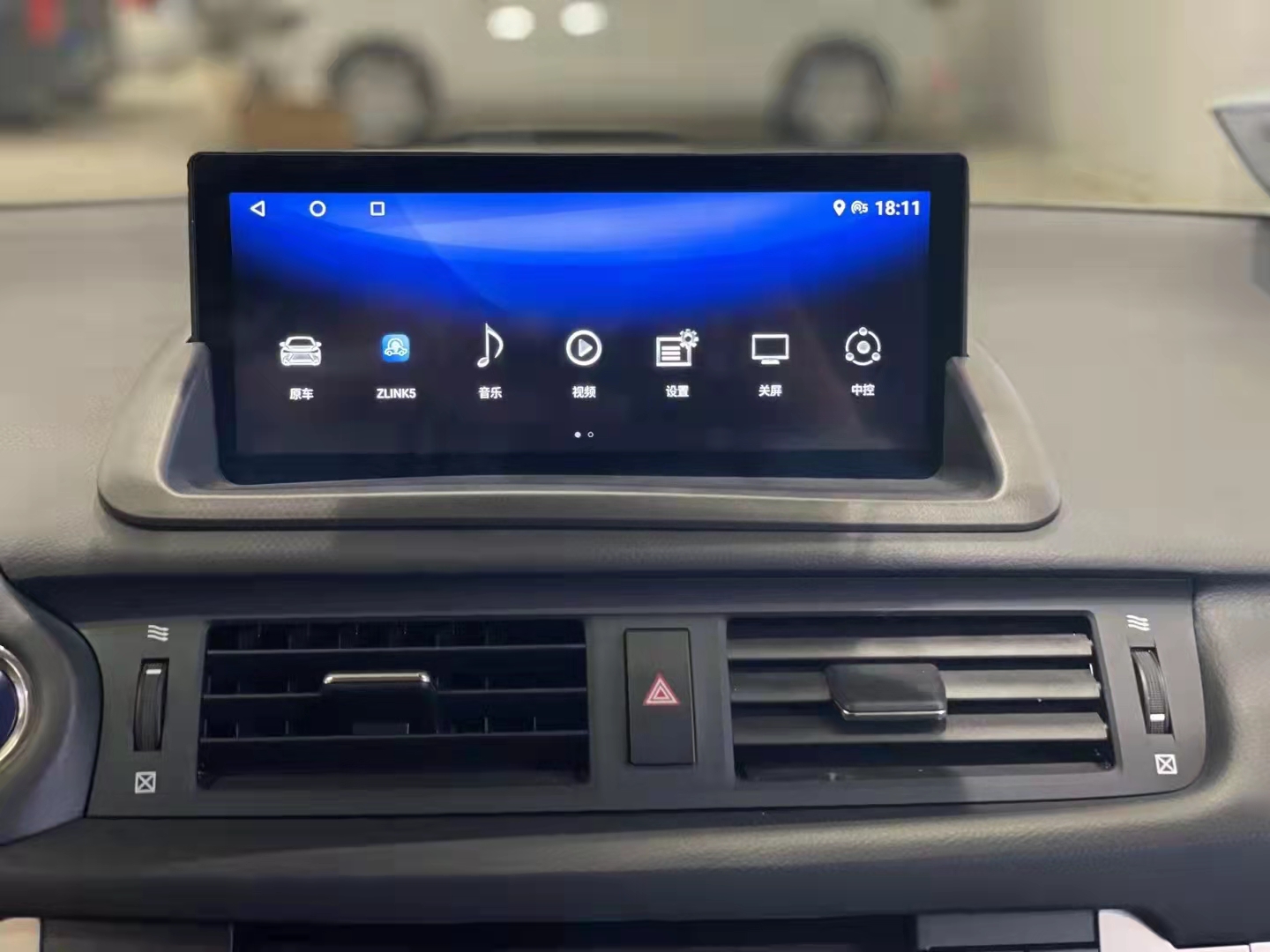

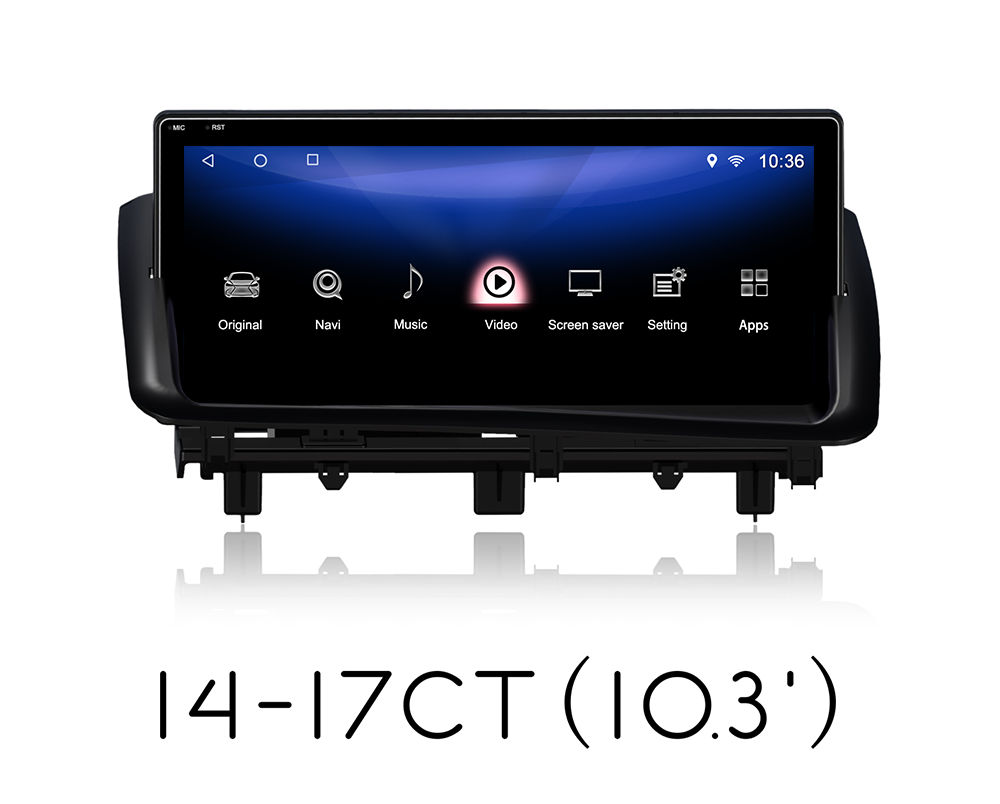

This 10.25-inch Android 13 head unit is developed specifically for the Lexus CT (CT200h) 2012-2020 dashboard, not adapted from a universal double-DIN shell. The screen housing, mounting brackets and the OEM-style panel are modelled on the original CT centre console, so the unit drops into the factory location without cutting plastic or running new cable routes. Power, CAN and microphone connections are made through a dedicated plug-and-play harness.

Under the panel the system runs Android 13 on a Qualcomm QCM6125 octa-core processor with 8GB RAM and 128GB ROM, driving a 1920x720 capacitive IPS display. Wireless CarPlay and Android Auto are built into the board, so distributors can ship the unit without asking end users to buy additional adapters.

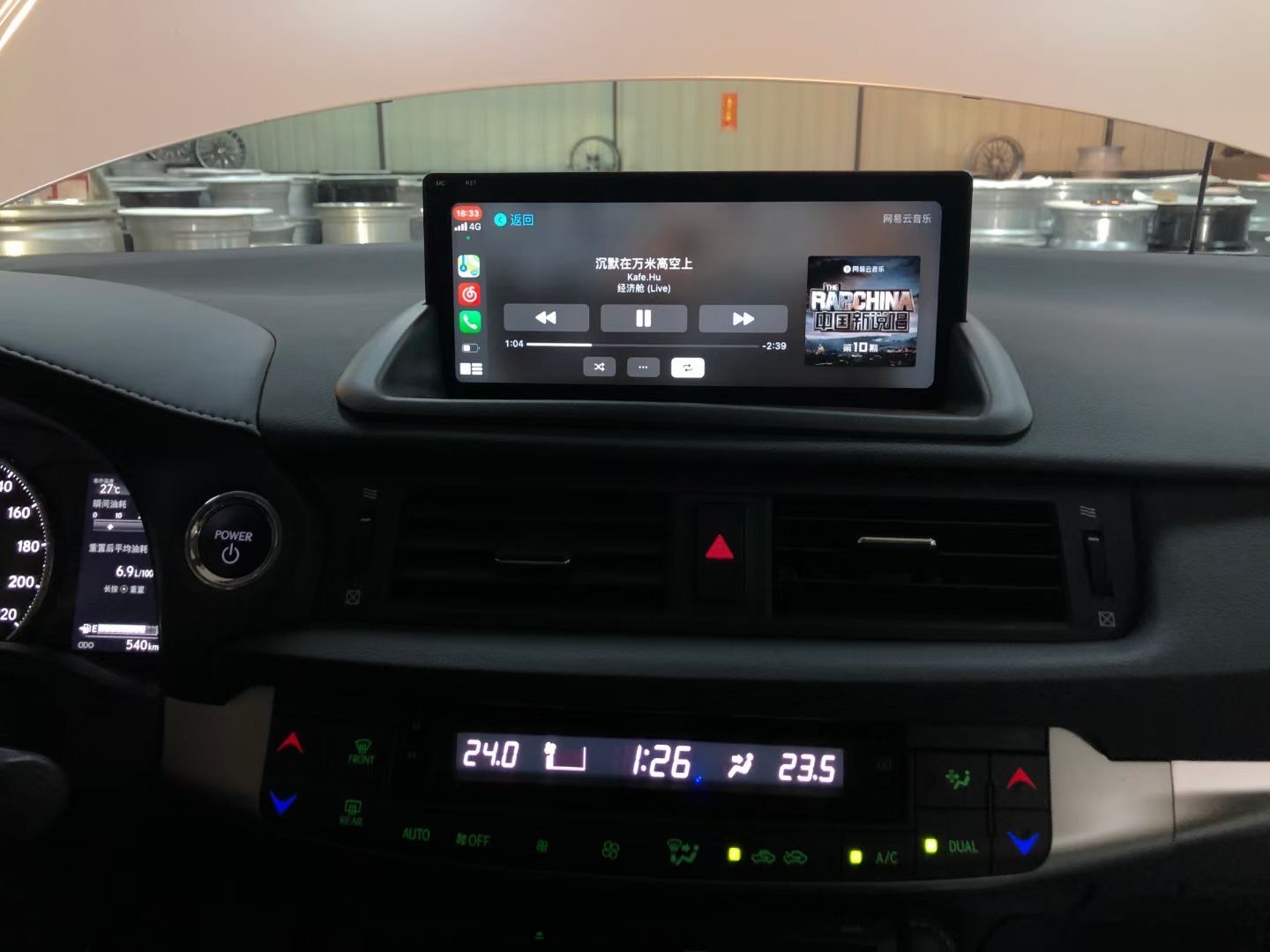

The most important part for Lexus owners: the Android screen runs alongside the original Lexus system rather than replacing it. Steering wheel multimedia buttons, door-open display, the factory amplifier, the original air-conditioning panel and the OEM camera all stay functional, and the driver can switch between the Android interface and the factory interface at will. That makes this unit an easy sell for installers who do not want to explain to a customer why the factory features disappeared.

Core Specs Card

Item	Specification
Compatible vehicle	for Lexus CT / CT200h 2012-2020

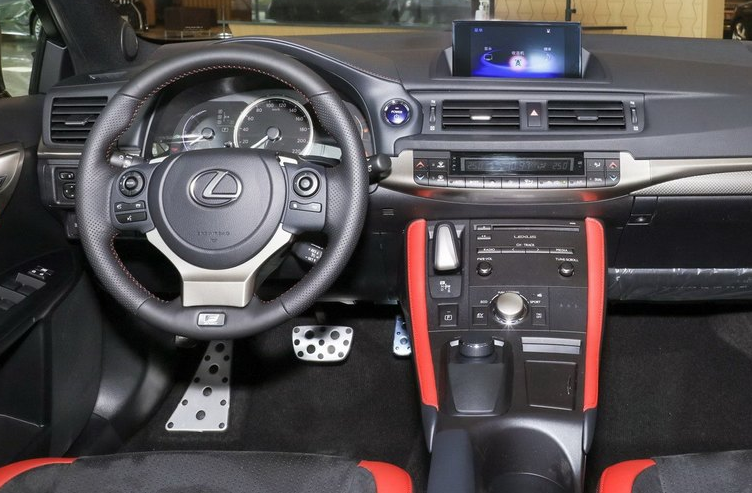

Original console type	Knob control (2015-2020) / Mouse control (2013-2020) / Non-OEM-screen low version (2011-2020)
OEM screen size	7.0 inch
Upgraded screen size	10.25 inch
Operating system	Android 10 / Android 13
CPU	Qualcomm QCM6125, 8 cores, 2.0 GHz
GPU	Adreno 610
RAM	8GB
ROM	128GB
Display resolution	1920 x 720
Screen type	Capacitive IPS, metal and rubber housing
CarPlay	Built-in, wireless
Android Auto	Built-in, wireless
Bluetooth	BT 5.0 (phone and music)
Wi-Fi	2.4G and 5G
GPS	GPS / GLONASS / BDS / Galileo / QZSS
USB	1 channel USB (USB 2.0)
Microphone	Original OEM mic or external mic
Camera	Supports factory camera (CVBS); no built-in 360, supports aftermarket and original 360 with an add-on adapter box
Factory system retention	Yes - Android and original system switchable
Built-in DSP / amplifier / radio	No built-in amplifier, no built-in radio tuner
RCA in / out	No
SD / TF card	No
Voltage	11V - 17V
Media formats	JPEG, MP3, MP4, WMA
Language support	English, Arabic, Spanish, Portuguese, Japanese, Korean, Chinese and more
Navigation software	Compatible with iGO, Sygic, TomTom, Garmin and multi-country maps
Net weight	4 kg
Gross weight	5 kg
Carton size	38 x 28 x 53 cm
Packed size	41 x 31 x 56 cm

Four Core Advantages

Real CT-specific tooling, not a universal shell

The panel, brackets and harness are built against the CT 2012-2020 centre console and the three original configurations (knob, mouse, no factory screen). Installers get a factory-fit result on the first attempt, which cuts labour time and warranty claims.

Original Lexus system stays fully alive

Rather than deleting the OEM system, the unit runs in parallel with it. Steering wheel multimedia buttons, door-open display, factory amplifier, air-conditioning buttons, the original rear-view camera and the OEM menu all keep working. Day / night mode switching is supported.

Qualcomm hardware that still holds up

QCM6125 octa-core with 8GB + 128GB is a current-generation platform, not an ageing PX-series board. Apps launch cleanly, split-screen works (music plus navigation at the same time), and the 1920x720 IPS panel keeps CarPlay and maps sharp.

Built for B2B order flow

One SKU covers the whole CT 2012-2020 range, so distributors carry less stock. Units are inspected before packing, carton data is fixed and published above, and OEM/ODM branding is available for volume buyers.

Why Source From Us

Dedicated Lexus programme, not a side line. We already build and ship Android head units for CT, ES, IS, GS, RX, NX and UX, plus Android interface boxes for Lexus factory screens. The CT unit shares the same platform as the rest of the range, which means consistent firmware behaviour across a distributor's whole Lexus catalogue.

Configurations verified on real cars. The three CT variants (knob 2015-2020, mouse 2013-2020, non-OEM-screen 2011-2020) and right-hand-drive compatibility are documented and confirmed, so your sales team can qualify a customer with the centre-console photo alone.

Inspected and traceable before shipping. Every unit is checked by our technicians before the parcel leaves, and packaging data is fixed per model so your inbound logistics and warehouse planning stay predictable.

Engineering support behind the product. Technical staff are reachable online for installation questions, wiring-position confirmation and installation video handover - useful when your own installers are doing their first Lexus CT job.

Contact Us

Item	Our CT-specific unit
Panel fitment	CT 2012-2020 dedicated panel and brackets
Original console variants	Matched to knob, mouse and non-OEM-screen cars
Factory system	Runs in parallel with the OEM system, switchable
Factory camera	Factory CVBS camera retained
Steering wheel buttons	Supported
Harness	Dedicated plug-and-play harness in the box
Hardware platform	Qualcomm QCM6125, 8GB + 128GB
Wireless CarPlay / Android Auto	Built into the board
Installation risk	Lower, repeatable result

Item	Generic universal screen
Panel fitment	Universal shell, trimming or gap fillers often needed
Original console variants	One-size-fits-all
Factory system	Usually replaced or lost
Factory camera	Often dropped
Steering wheel buttons	Frequently unsupported
Harness	Cut-and-splice or adapter hunting
Hardware platform	Older-generation chip common
Wireless CarPlay / Android Auto	Often via external dongle
Installation risk	Higher, variable result

Car audio distributor building a Lexus range

A distributor who already stocks parts for Lexus models can add the CT unit with a single SKU covering 2012-2020. Because CT cars are now 5 to 13 years old, owners are actively looking for multimedia upgrades rather than new vehicles, and the factory-retention feature removes the biggest objection at the counter.

Auto accessory importer / wholesaler

One carton (38 x 28 x 53 cm, 5 kg packed) is easy to container-load alongside other Lexus models, and the fixed packaging data makes landed-cost calculation straightforward. OEM/ODM branding on the boot screen, packaging and manual is available for volume programmes.

Lexus specialist installers and modification shops

The unit drops into the original console, so a routine fit does not turn into a full-dash rebuild. The technician keeps the factory system, camera and steering wheel buttons intact, and can demonstrate Android 13, wireless CarPlay and split-screen to the customer immediately after installation.

Customizable items

Branding: Logo / splash screen on boot, logo on packaging and manual

Packaging: Custom carton artwork, private-label box design

Language pack: Pre-loaded default language and regional map set

Software: Default UI theme, pre-installed app package, boot animation

Accessories: Microphone, camera and 360 adapter configured to order

Model variants: Multiple Lexus / Toyota models consolidated into one purchase order

Service flow

Inquiry - send us the target model, expected annual volume and requirements.

Model confirmation - we confirm the centre console variant (knob / mouse / non-OEM-screen) and year range against your customer's car.

Sample & validation - a working sample is provided for your own bench test and fitment check.

Specification sign-off - branding, language, UI, packaging and accessory list locked and documented.

Mass production - batch production with pre-shipment inspection on every unit.

Support and follow-up - installation guidance, technical support channel and spare-part planning after delivery.

Not limited to CT. We also develop Android head units and Android interface boxes for other Lexus models including ES, IS, GS, RX, NX, UX, RC, LS, LX and Toyota platforms. If you have a model that is not on our standard list, send us the centre console photo and year range - custom development enquiries for new car models are welcome.

Contact Us

Certifications & Backing

re-shipment inspection - each unit is powered up and function-checked by our technicians before packing.

Fixed packaging specification - carton size, packed size, net weight and gross weight are documented per model, so your logistics and warehouse planning do not drift between batches.

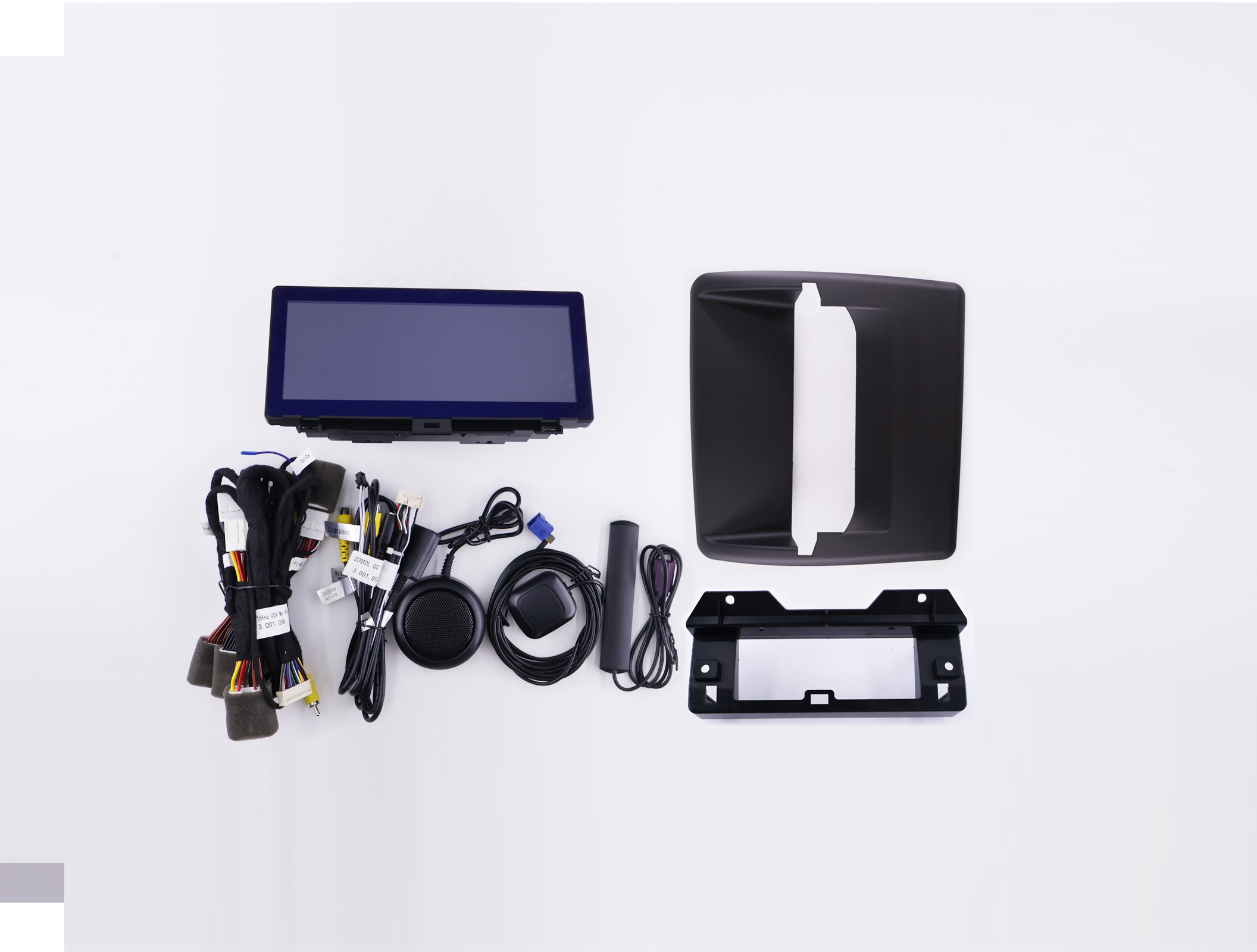

Full accessory set in the box - main unit, CT-specific panel frame, main power harness, GPS antenna, USB cable, OEM microphone, aftermarket 360 harness, speaker cable, OEM CAN cable, OEM socket and OEM wire. Your customer does not need to source extra cables.

Technical support channel - installation questions, wiring position confirmation and installation video handover are handled by our engineering team.

Manufacturing and quality process - product knowledge, firmware and hardware for this CT unit come from the same programme that supplies our full Lexus Android head-unit range.

Upgrade the whole Lexus CT 2012-2020 range with one dedicated SKU.

Send us your target quantity and your customer's centre console photo, and we will confirm

Contact Us

FAQ

1. Will this unit fit my customer's Lexus CT?

It covers for Lexus CT / CT200h 2012-2020. The CT was built with three original console configurations: knob control (2015-2020), mouse control (2013-2020), and a low version without an OEM screen (2011-2020). Send us a photo of the centre console and we will confirm the correct variant before you order.

2. Does it keep the original Lexus system?

Yes. The Android system runs alongside the original Lexus system instead of replacing it. Steering wheel multimedia buttons, door-open display, the factory amplifier, the original air-conditioning panel, the OEM menu and the factory camera stay functional, and the driver can switch between the Android interface and the factory interface.

3. Does it work with the factory camera and 360 system?

The unit supports the factory camera over CVBS, and it supports both aftermarket and original 360 systems through an add-on 360 adapter box. There is no built-in 360 function on this screen itself.

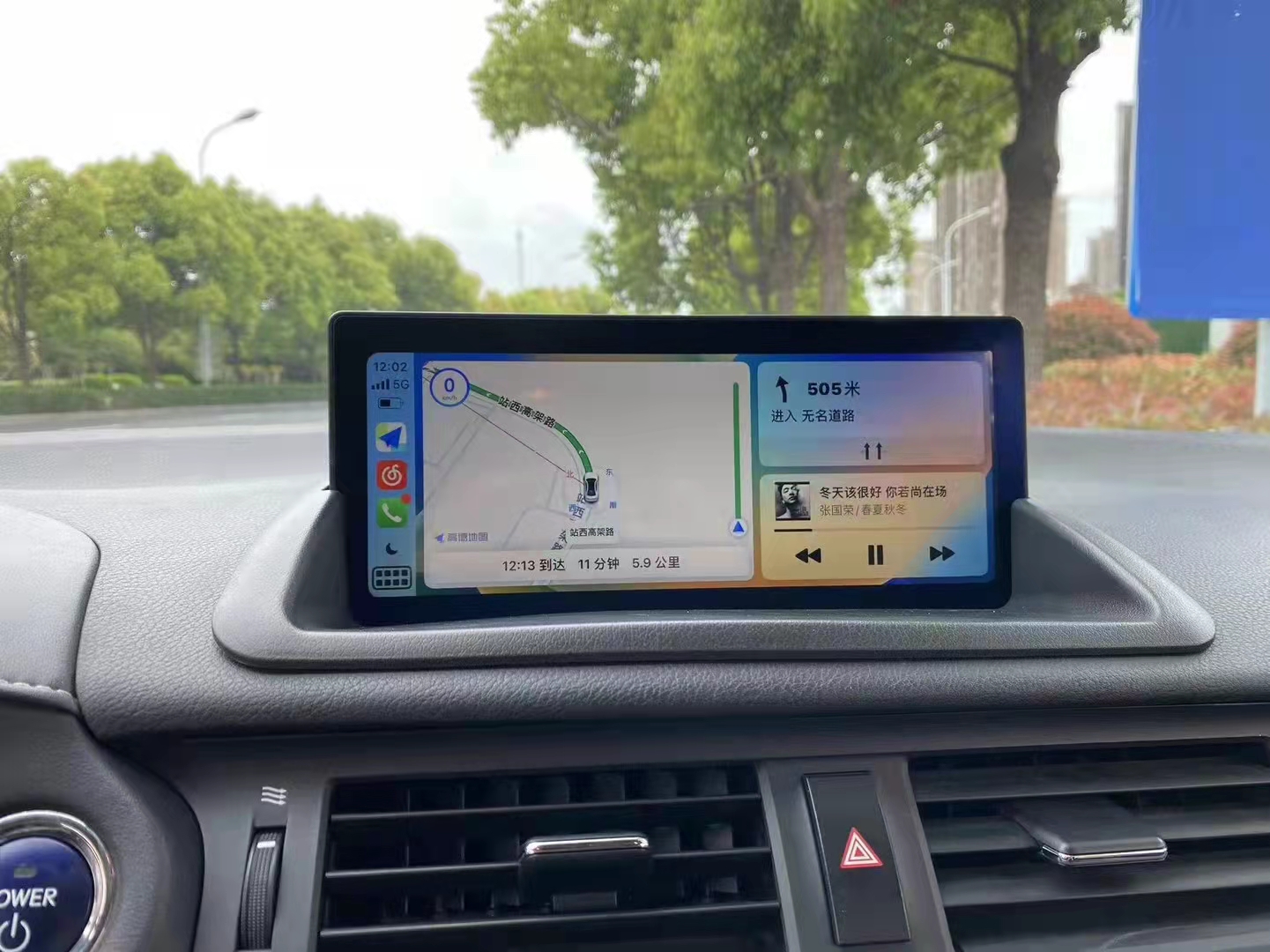

4. Is CarPlay and Android Auto wireless?

Yes, both wireless CarPlay and wireless Android Auto are built into the board, so no external dongle is required.

5. What are the RAM and ROM?

8GB RAM and 128GB ROM on Android 13 (an Android 10 version exists for the older configuration).

6. Do I need to cut any plastic or run new cables during installation?

No. The panel, brackets and harness are made for the CT console, and the installation is non-destructive. The box already contains the main power harness, GPS cable, USB cable, OEM microphone, speaker cable, OEM CAN cable and connectors.

7. Can it work with the original amplifier and steering wheel buttons?

Yes. The unit is compatible with the original power amplifier and supports steering wheel multimedia physical button control. Note that the sound stage behind the DSP is not adjustable in the Android system.

8. Does it support maps and multiple languages?

It works with multi-country map applications including iGO, Sygic, TomTom and Garmin, and supports multiple interface languages including English, Arabic, Spanish, Portuguese, Japanese and Korean.

9. What are the carton and weight figures for shipping?

Carton size 38 x 28 x 53 cm, packed size 41 x 31 x 56 cm. Net weight is about 4 kg per set, gross weight about 5 kg per carton. Units can be consolidated with other Lexus models in the same order.

10. Can we order with our own brand?

Yes. OEM and ODM programmes cover boot-screen logo, packaging artwork, manual branding, default language, pre-installed app package and accessory configuration. We also develop units for other Lexus and Toyota models, so if you need a car model that is not in our current list, send us the console photo and year range for a custom development quote.
