Customized Development of the ISUZU D-MAX Pre-installed AVM 360 Panoramic Imaging System

This project is an original equipment manufacturer (OEM) project we collaborated on with a well-known Malaysian automaker. We customized and delivered the AVM360 panoramic imaging system in batches for their flagship pickup truck model, the ISUZU D-MAX. The successful application of this system significantly enhances the technological sophistication and driving safety of the D-MAX, demonstrating our one-stop customized service capabilities from design and R&D to production.

Client Requirements: As a rugged pickup truck targeting the global market, the ISUZU D-MAX needs to ensure driving safety in complex urban and off-road conditions. The client made the following core requirements:

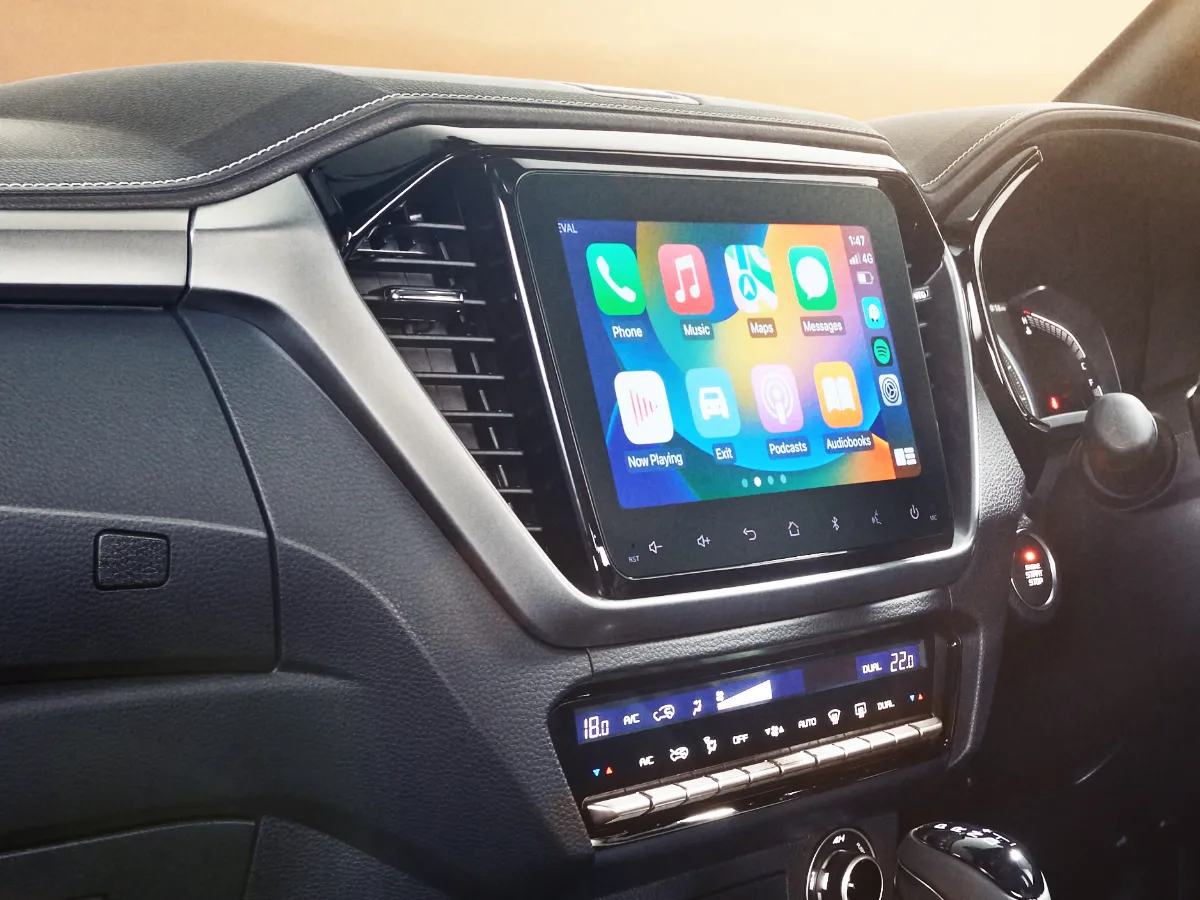

High Integration: It must be a factory-installed feature, seamlessly integrated with the vehicle's central control screen and CAN bus system, without affecting the interior aesthetics.

Environmental Adaptability: The system must be able to stably cope with Malaysia's hot, humid, and rainy tropical climate.

Superior Performance: Providing a panoramic view with no blind spots, low distortion, and high definition, which is especially crucial in narrow roads and off-road driving.

Pre-installation Standards: All components, software protocols, and production processes must meet the stringent pre-installation quality and automotive-grade standards of the automotive industry.

Our Solutions and Product Features: To meet our clients' demanding requirements, we offer complete integrated hardware and software solutions:

Customized Hardware Design: Ultra-wide-angle HD Cameras: HD cameras optimized for the D-MAX design are installed in the front, rear, left, and right directions of the vehicle, effectively eliminating blind spots.

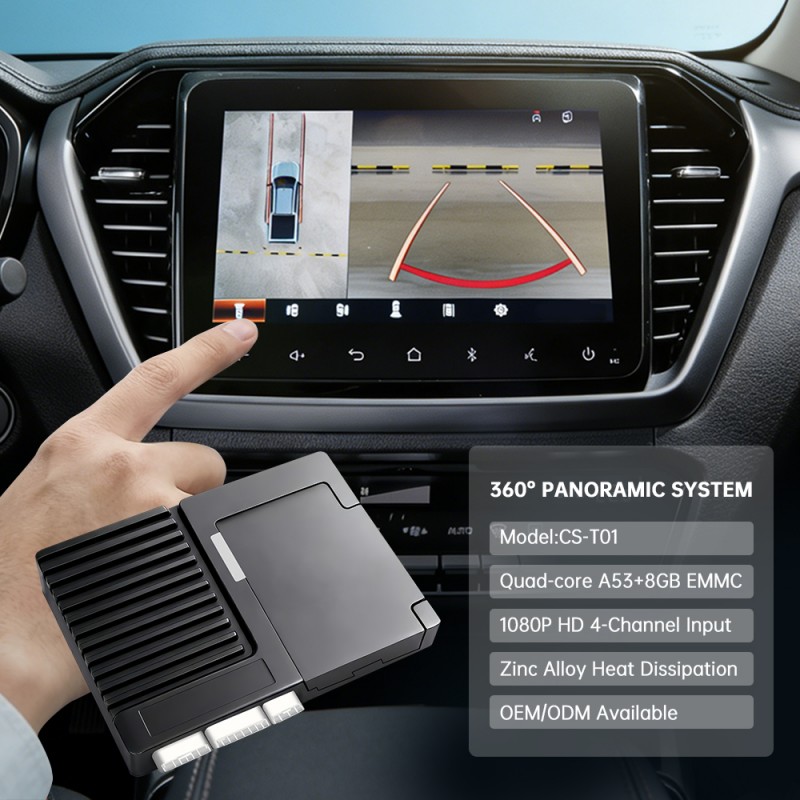

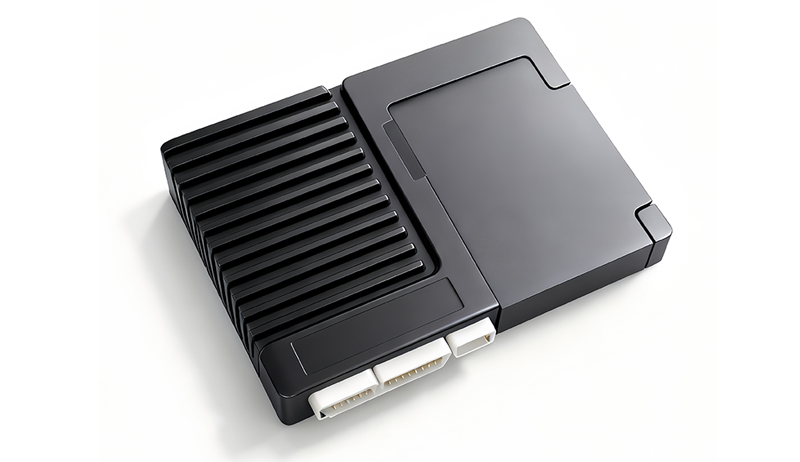

Automotive-grade Main Control ECU: The core processing unit uses automotive-grade chips, possessing powerful image stitching and processing capabilities to ensure smooth and real-time video.

Environmental Durability: Both cameras and wiring harnesses have IP67 or higher protection ratings and have undergone rigorous high and low temperature, vibration, and salt spray tests, perfectly adapting to tropical climates.

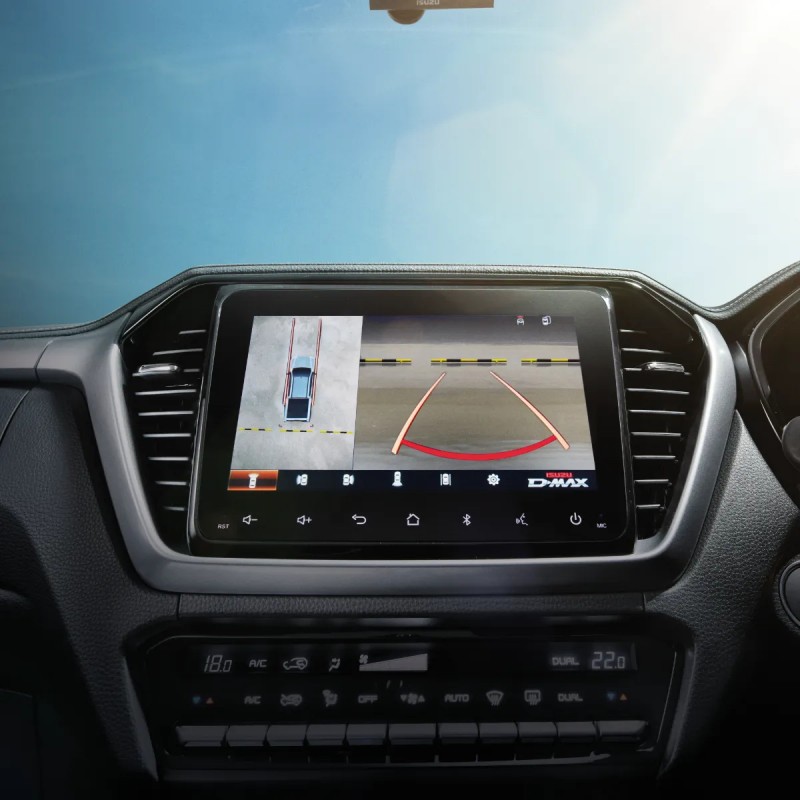

Intelligent Software Algorithms: Seamless Stitching Technology: Through advanced image correction and stitching algorithms, four video signals are combined into a seamless 360° panoramic bird's-eye view, producing a realistic and natural image.

Multiple View Modes: Supports switching between panoramic, front, rear, and side views, and can automatically trigger the corresponding view based on steering and gear signals.

Dynamic Trajectory Lines: Equipped with dynamic auxiliary lines that change with the steering wheel angle, accurately predicting wheel trajectories and assisting driving judgment in complex road conditions.

Service Process Overview:

Requirement Integration and Solution Design: In-depth communication with the client's engineering team to clarify technical specifications and vehicle compatibility details.

Engineering Development and Testing: Hardware structure design and software algorithm development, followed by multiple rounds of bench testing and real-vehicle road testing to ensure stable performance.

Small-batch Trial Production and Verification: Trial production is conducted according to the pre-installation process, delivering samples for customer vehicle verification, and final optimization based on feedback.

Mass Production and Delivery: After approval, the automated production line is launched for large-scale, high-quality mass production and on-time delivery.

Application Scenarios and Value: This system is mainly used for:

Urban narrow road passing and parking: Effectively avoids scratches and improves driving confidence.

Off-road and complex terrain: Clearly displays obstacles around the wheels, such as rocks and ditches.

Enhancing overall vehicle quality: As a key intelligent safety feature, it strengthens the ISUZU D-MAX's competitiveness in the market.

Project Outcomes and Customer Value

Through this project, we not only successfully delivered high-quality OEM products to our Malaysian customer but also earned their long-term trust. This fully demonstrates that we:

Possess the technical strength and quality system to undertake international OEM projects.

Have full-process customized development capabilities from concept to mass production.

Products meet the most stringent automotive industry standards, ensuring reliability and durability.

This case study is a microcosm of our services to global automotive brands. We look forward to bringing you the same exceptional products and services through this professional customization capability.
