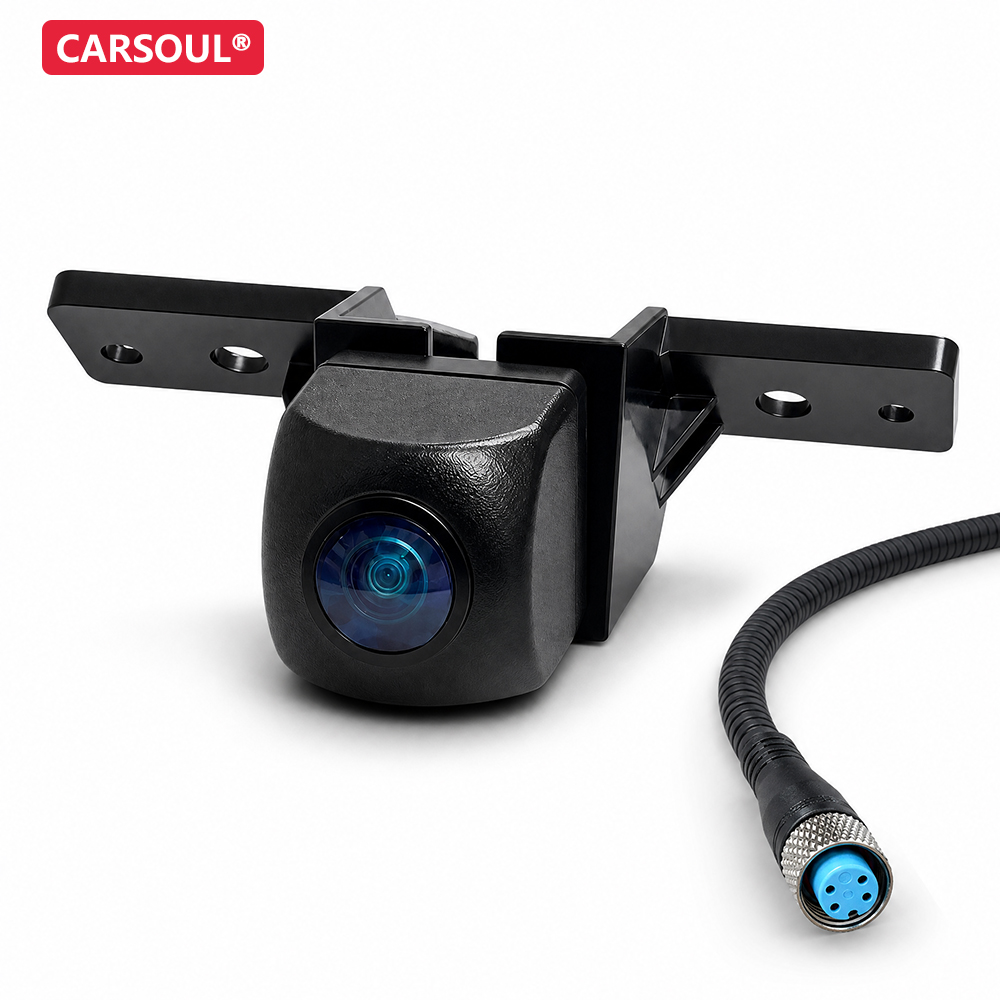

Suzuki Jimny Rear View Camera — Engineered Specifically for the Jimny JB64 / JB, 74
A purpose-built backup camera developed from the Jimny's original rear mounting geometry — 150° wide-angle lens, IP67 weatherproofing and a factory-style bracket that fits like OEM, without replacing the original system.
Core Specs Card
| Item | Specification |
|---|---|
| Car Fitment | Suzuki Jimny JB64 / JB74 (2018–2025) |
| Type | Rear view / Backup / Reverse camera |
| Image Sensor | CMOS / CCD (AHD or CVBS version available) |
| Video Output | CVBS N-type, DC 5V (AHD option) |
| Horizontal View Angle | 150° |
| Vertical View Angle | 115° |
| Function | Waterproof, dynamic parking guidelines |
| Protection | IP67 (silicone potting) |
| Housing Material | ABS + Metal |
| Connector | 4Pin Mini (vehicle-specific) |

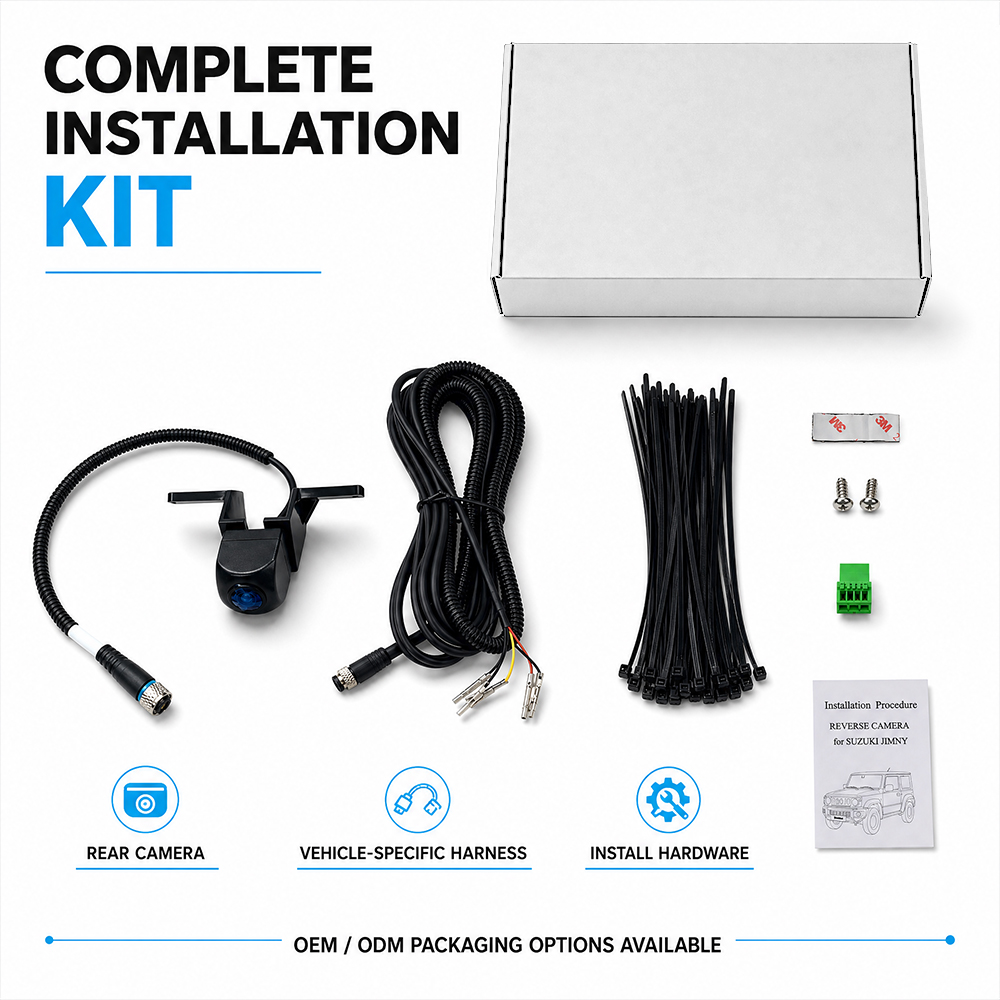

| Cable Harness | 460cm extension + 50cm camera cable + 38cm threaded sleeve (≈5.1m total) |
| Thread Length / Wire Length | 380mm / 500mm |
| Operating Temp. | -20℃ ~ +70℃ |
| Storage Temp. | -40℃ ~ +85℃ |
| Certifications | CE, FCC, RoHS (factory IATF 16949 / ISO 9001) |
Four Core Advantages
Built for Your Vehicle — Not Adapted to It. Every CARSOUL system is designed around the vehicle, not the other way around. That means easier installation, better image quality, and a true OEM-level experience.
True Jimny Fit, Not a Universal Adapter

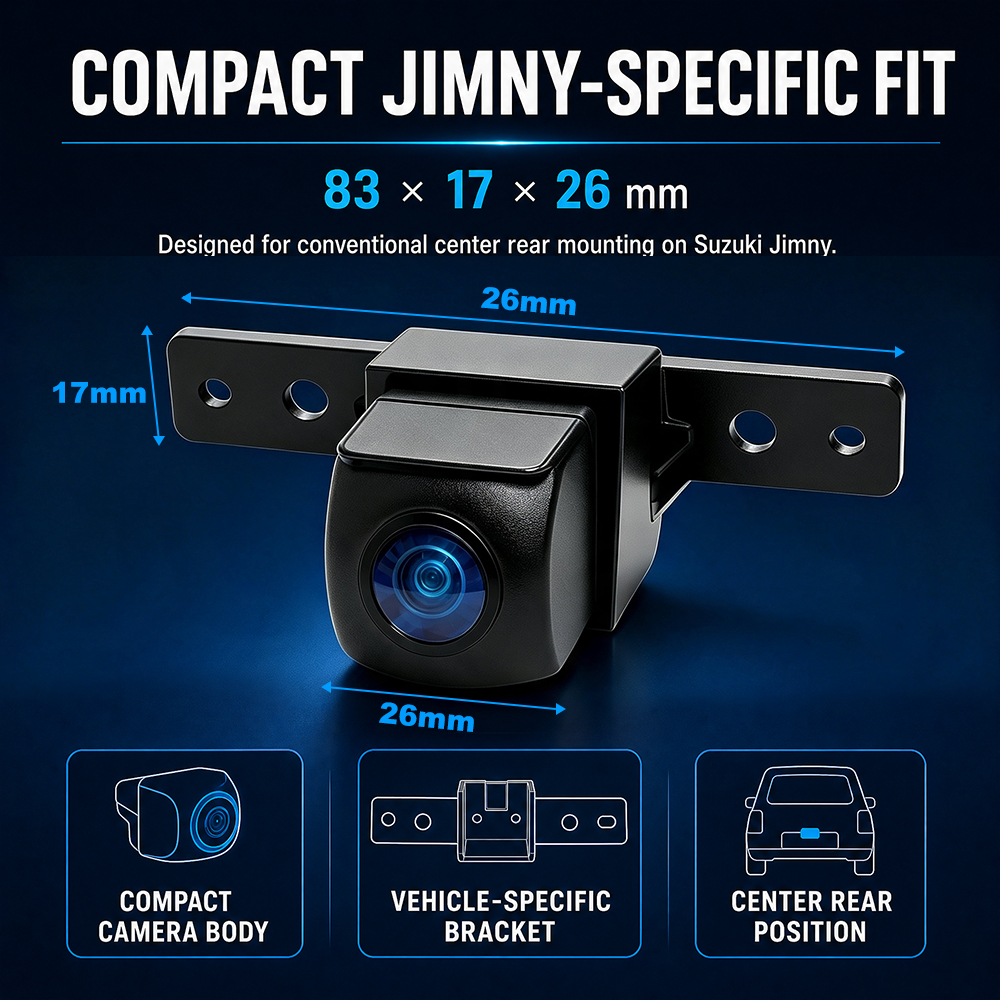

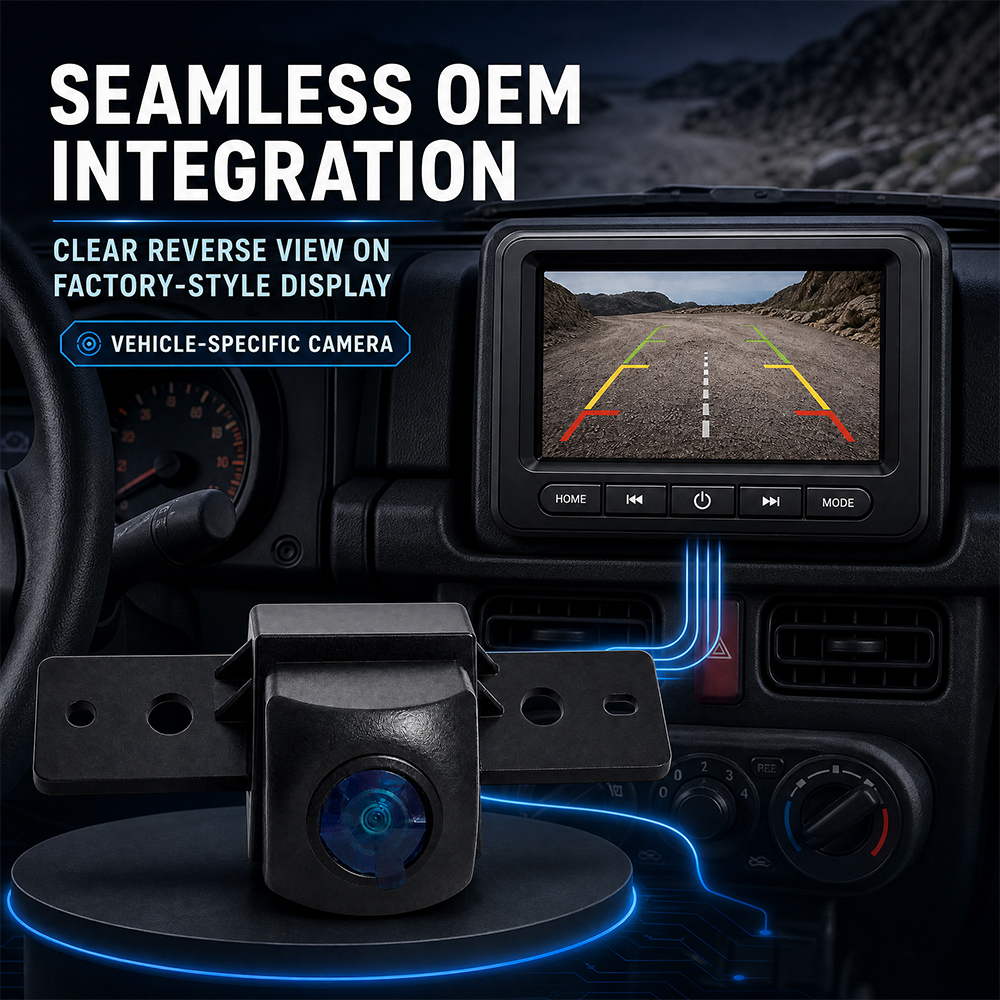

Developed from the JB64/JB74 rear mounting geometry — the bracket, connector and cable routing are all optimized for the Jimny. It installs like factory and looks factory, which sells as a premium accessory.

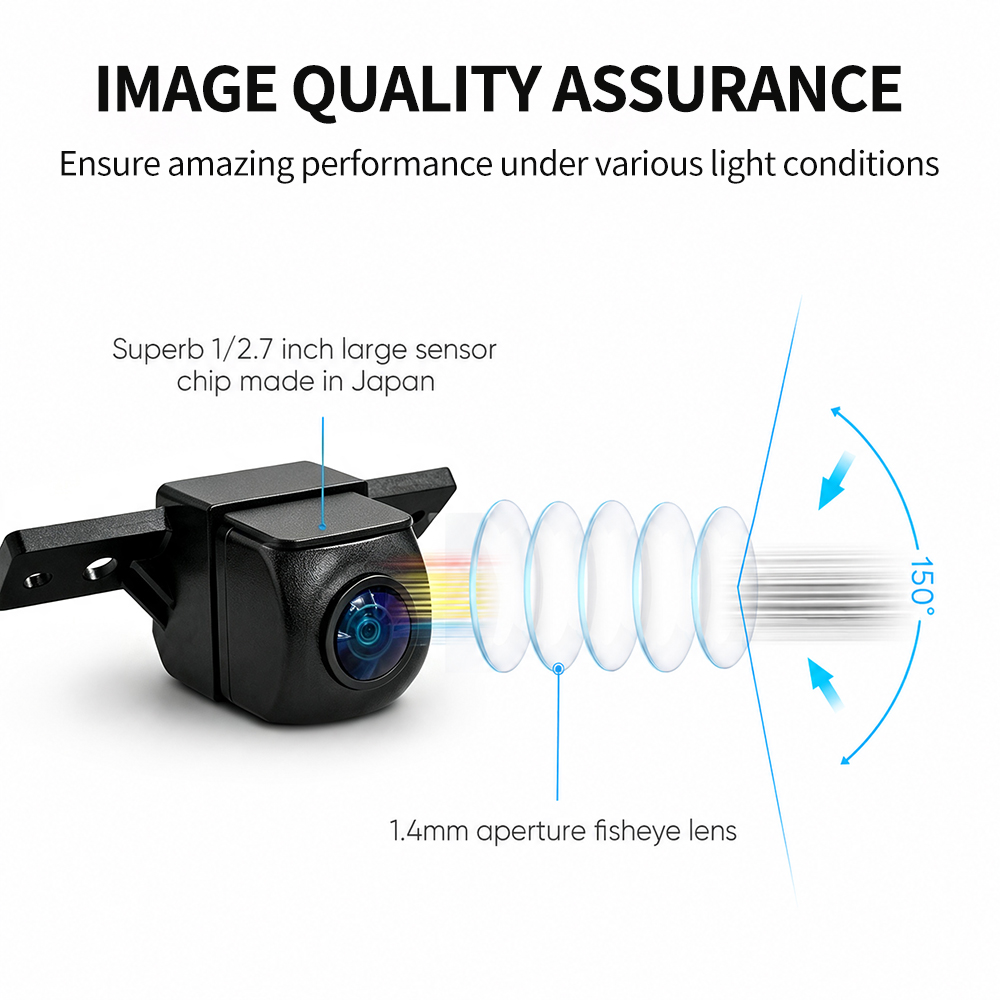

150° Wide-Angle with Dynamic Parking Lines

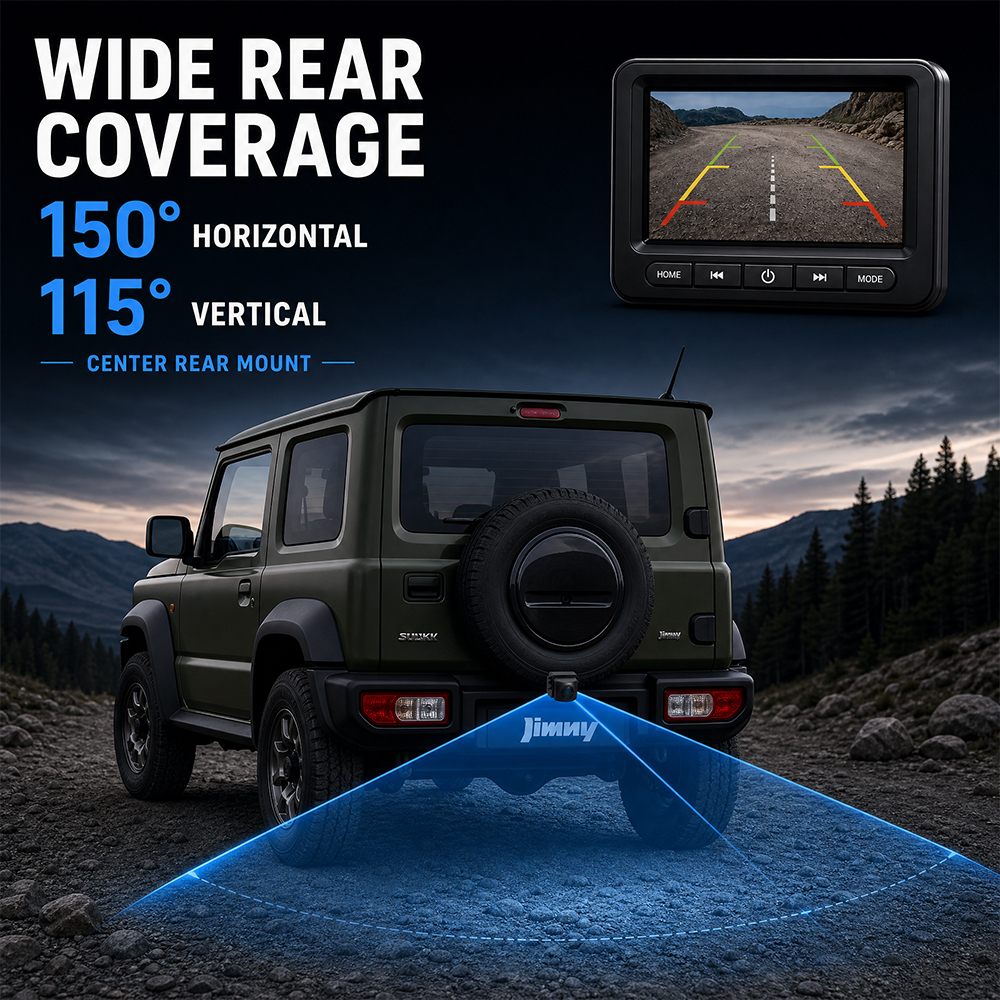

A 150° (H) / 115° (V) lens covers the blind spots mirrors can't reach, paired with trajectory guidelines that help drivers judge distance and obstacles behind the vehicle.

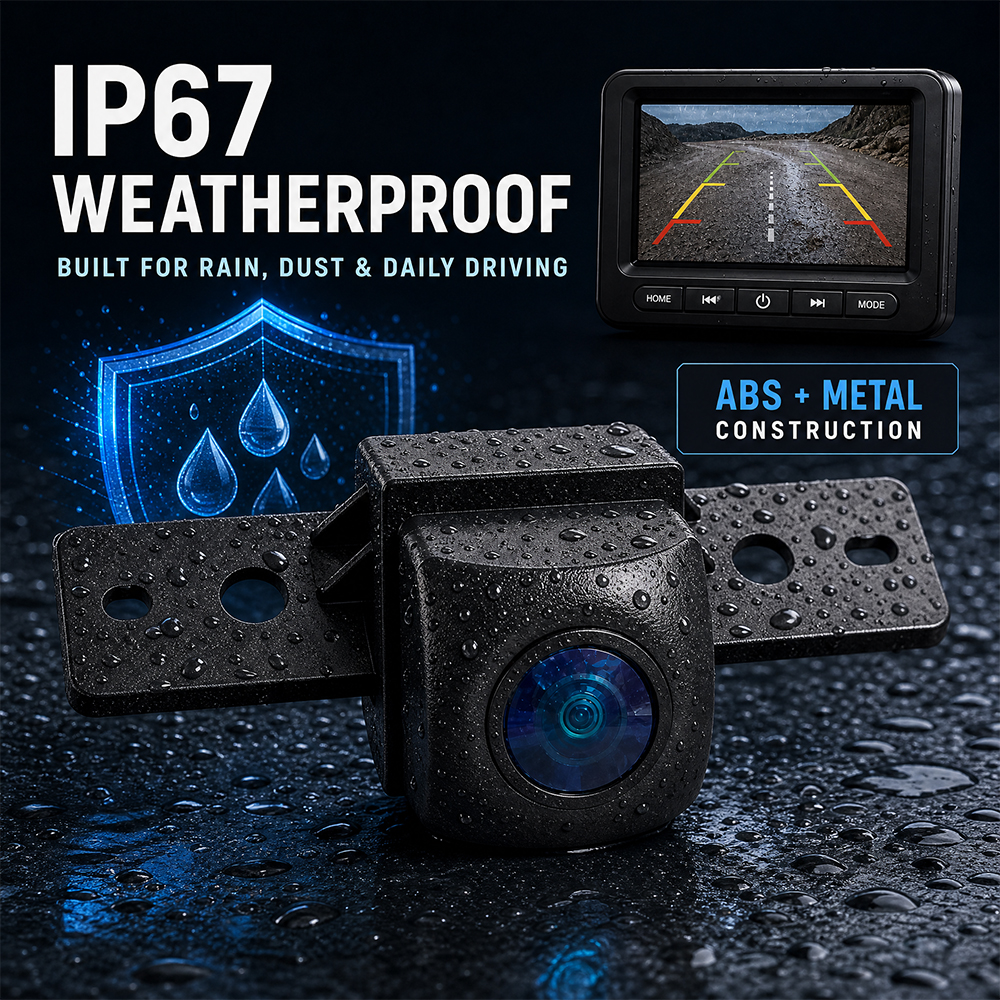

Off-Road Grade Durability
IP67 potted housing, ABS + metal construction, and a -20~+70℃ operating range — proven through mud, water crossings, sand and freezing conditions that define the Jimny lifestyle.
Plug-and-Play & Customizable
A 5.1m harness with 4Pin mini connector and a protective threaded sleeve at the tailgate hinge eliminates cutting and chafing. OEM/ODM options cover connector, cable length, color, logo and packaging.
Why Procure From Us
| Universal Backup Camera | Carsoul Jimny Camera | |
|---|---|---|
| Fitment | Manual drill / adhesive | OEM-style Jimny bracket |
| View | ~120–170° generic | 150° (H) / 115° (V) tuned for Jimny |
| Connector | Mixed / RCA | 4Pin mini, weather-sealed |
| Install | Long, skill-dependent | Plug-and-play, no cutting |
| Brand Value | Low | Premium, defensible margin |
| Generic Import | Carsoul (OEM/ODM) | |
|---|---|---|
| Quality System | Often none | IATF 16949 / ISO 9001 |
| Certifications | Varies | CE / FCC / RoHS supported |
| Customization | Rare | Connector / cable / logo / packaging |
| After-sales | Weak | Docs, guides, warranty backing |
Designed for Every Driving Situation
Off-Road Trail
Mud, water and dust are no match for an IP67 potted camera. The rugged ABS+metal housing keeps the rear view alive through every adventure the Jimny was built for.
Tight City Parking
150° wide-angle and dynamic parking lines turn tricky parallel parking into a confidence game — no more guessing the curb or the bumper behind you.
Trailer / Gear Loading
With the spare tire on the tailgate, rear visibility is limited. The dedicated camera and 5.1m harness give a clear, stable feed so you hitch, load and reverse safely.
OEM / ODM Custom Rear View & 360° Camera Development Carsoul is an IATF 16949 / ISO 9001 automotive electronics manufacturer. Beyond the Suzuki Jimny program, we develop vehicle-specific cameras and 360° AVM systems for ANY model — sedan, SUV, pickup, van, truck or bus.
What we customize
Custom Development Process
👉 Welcome to contact us for custom camera / 360° AVM development for ANY vehicle model. Send us your car's parts and interface — we turn them into a factory-fit vision system.
Certificates & Backing
Need a rear camera for another model? We develop vehicle-specific cameras and 360° AVM for sedans, SUVs, pickups, vans and buses. Talk to our engineering team today.
FAQ
Q: What’s your MOQ? Do you accept trial orders?
A: Small trial orders are welcome to reduce your market testing risk. We offer tiered pricing for bulk orders. Specific MOQ is available upon inquiry.
Q: Can I get samples for testing? How about sample cost?
A: We support sample orders; the function and quality of samples are consistent with bulk orders. The sample fee can be deducted from future bulk orders.
Q: Do your products have export certifications?
A: All products have CE, FCC, RoHS certifications. We provide certificates for customs clearance in Europe, America, Middle East, Southeast Asia, etc.
Q: What’s your purchasing process?
A: Confirm demand → Quotation → Sample / Contract → Deposit → Production & Inspection → Shipment → Balance → Technical support.
Q: What payment and trade terms do you accept?
A: Payment: T/T, L/C, PayPal. Trade terms: EXW, FOB, CIF, DDP. Sea, air and express shipping are available.
Q: Do you provide technical and installation support?
A: We offer detailed wiring diagrams, manuals and installation guidance. Remote technical support is also available.
Q: How do you control quality and after-sales?
A: Full inspection during production; test videos/reports before shipment. For non-artificial quality issues, we offer replacement, re-supply or reasonable compensation.
