For Isuzu Truck Rear View Camera AHD 720P IP68 130° Wide-Angle Backup Camera

The quick scan — what makes the 06A96 the right buy.

AHD 720P HD clarity — Digital signal, no CVBS haze; judge distance with confidence.

130° wide-angle coverage — Full rear bumper + both corners, zero classic blind spots.

IP68 all-weather sealed — Rain, wash-down, dust; built for daily commercial abuse.

White-light full-color night vision — True-color images down to 0.1 lux, not just IR silhouettes.

12–24V wide voltage — One SKU fits the whole Isuzu range and mixed fleets.

Mirror mode + 4-Pin plug-and-play — Bracket mount, waterproof connector, fast tail install.

Inquire Now Next Product

Built for the Back of Your Isuzu

A purpose-built rear view / backup camera for Isuzu trucks and heavy-duty 12–24V commercial vehicles.

Why a dedicated truck rear camera：Passenger-car cameras aren't built for the abuse a work truck dishes out — constant vibration, pressure-washing, desert heat and winter cold. The 06A96 is specced from the ground up for commercial duty: a 1/2.9" CMOS sensor, digital AHD 720P signal, and an IP68 sealed housing that shrugs off water, dust and mud.

Drop-in for the Isuzu range：With a 12–24V wide input and a standard 4-Pin waterproof connector, one camera fits Isuzu N-series (NPR / NQR / NNR), F-series (FTR / FRR / FSR) and most 12–24V trucks. Mirror-image mode renders exactly like a factory rear-view, so drivers get instinctive backing every time.

Core Specs Card

Image Sensor	1/2.9" CMOS
Resolution	1280×720 (720P AHD)
Video System	AHD, 25 fps, PAL
Field of View	130° H / 70° V / 135° D
Min. Illumination	0.1 lux
Night Vision	White-light full-color (650nm)
Waterproof Rating	IP68
Operating Voltage	DC 12–24V
Power Consumption	1.5 W
Operating Temp.	-30°C ~ 75°C
Image Mode	Mirror
Connector	4-Pin WP male (282106-1)
Mounting	Bracket
Tail Cable	50 cm (±5 cm)
Audio	No audio
Signal / Noise	≥50 dB
Packing	60 pcs / carton

Core Advantages

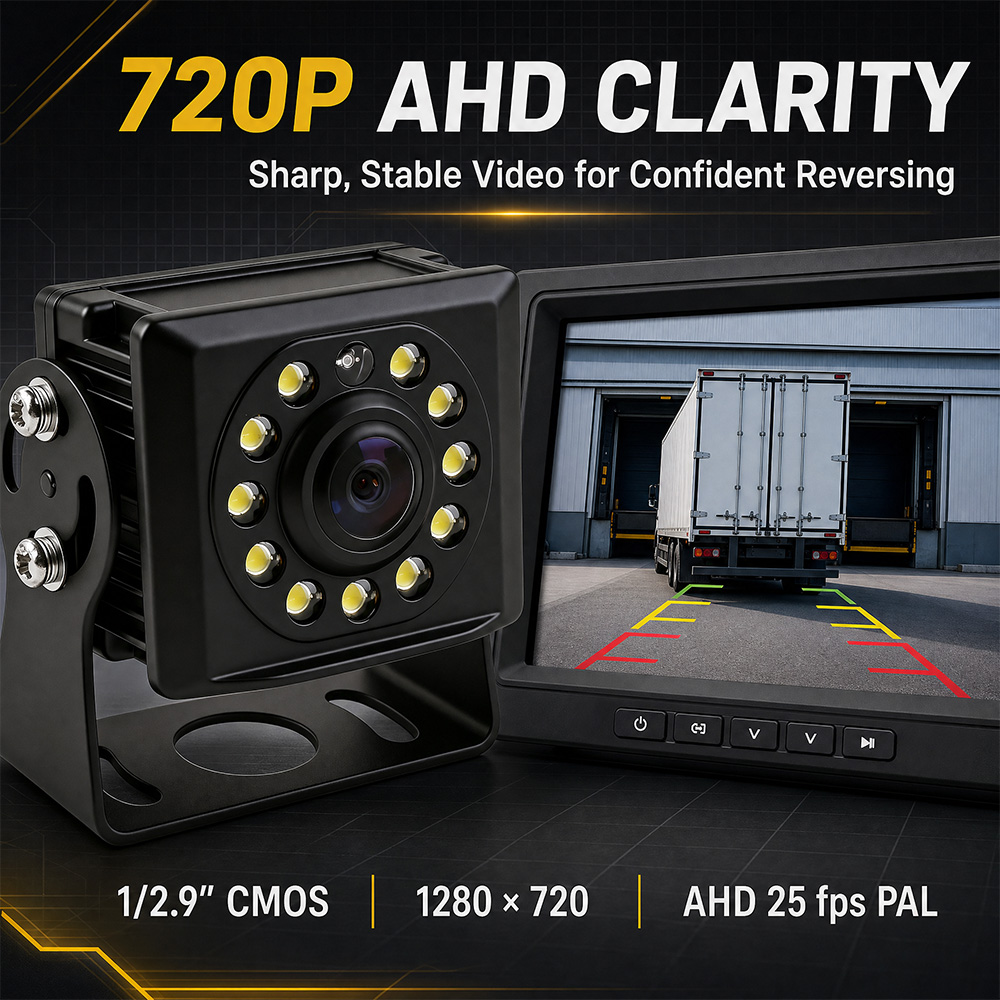

Crystal-clear AHD 720P

Digital AHD signal delivers sharp 720P video with no CVBS haze or signal bleed — critical when judging distance at the dock or on a muddy site.

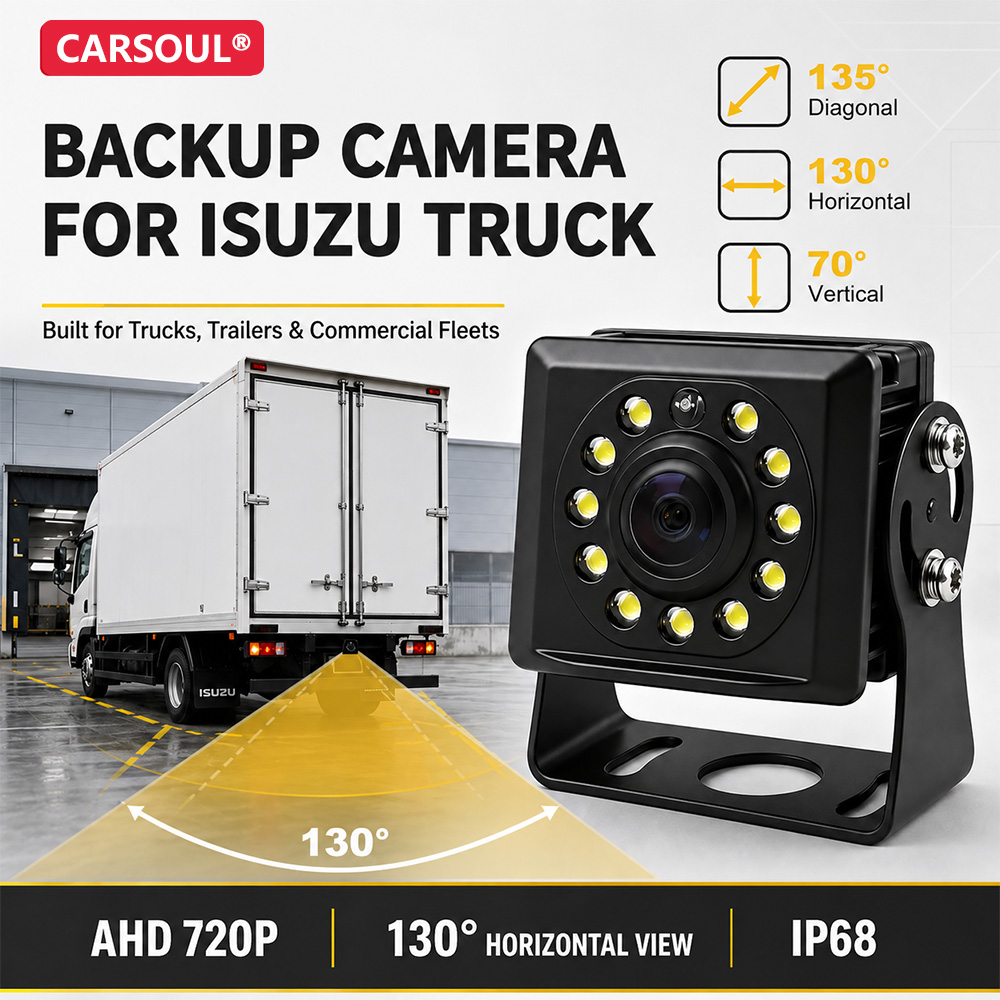

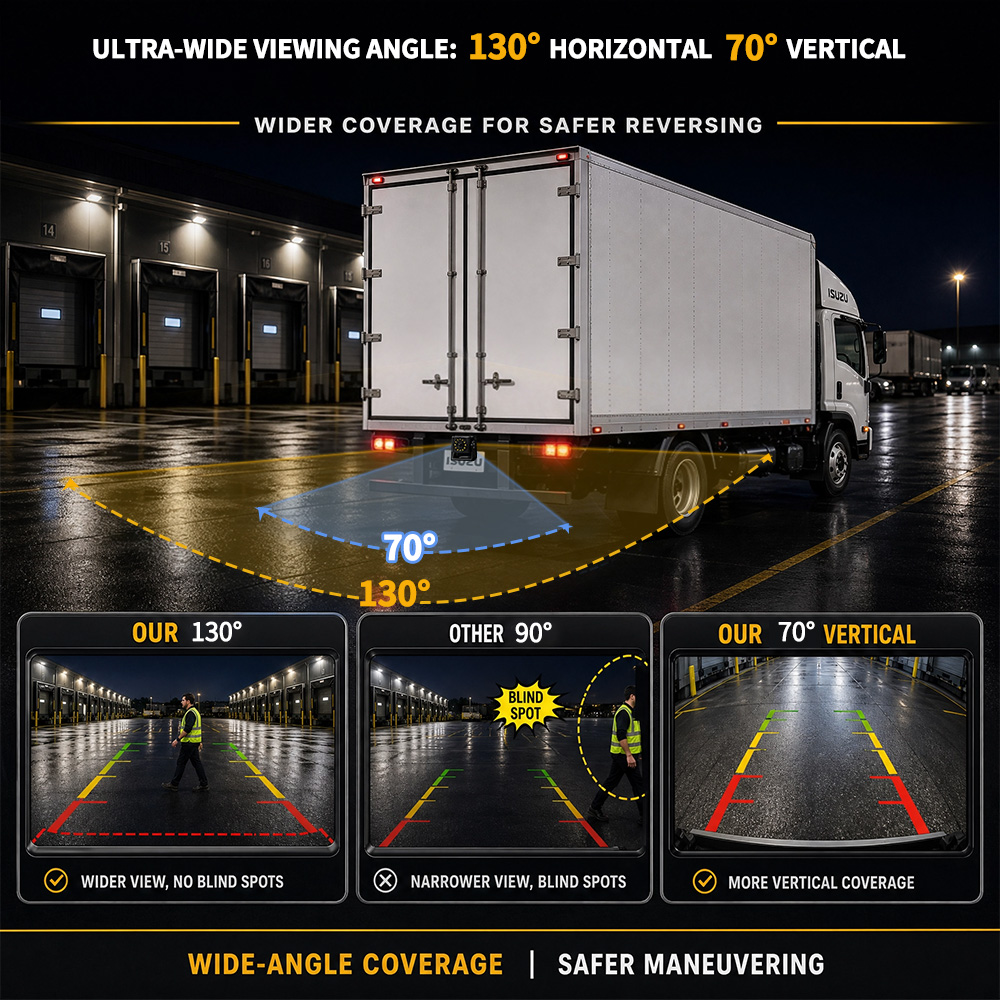

130° wide-angle, zero blind spot

A 130° horizontal / 135° diagonal view covers the full rear bumper and both rear corners, eliminating the classic backing blind spots on box and tipper trucks.

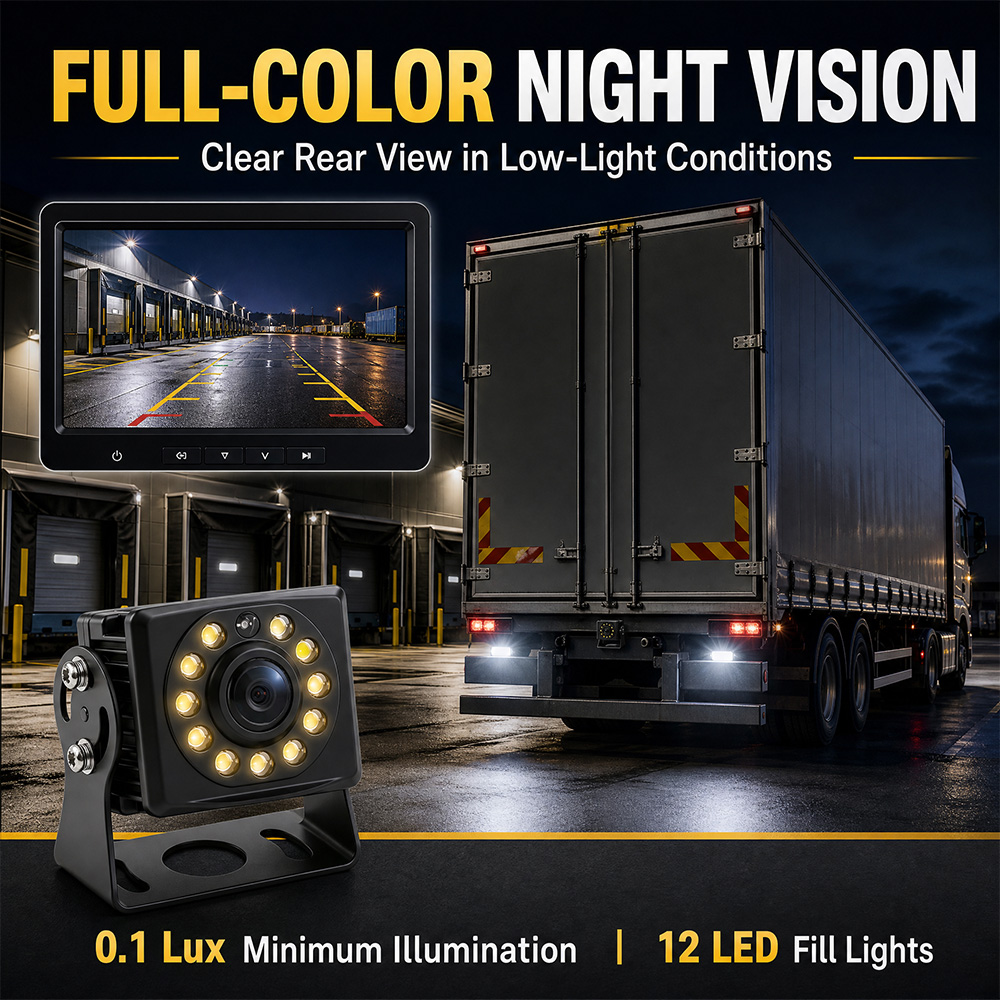

White-light full-color night vision

650nm white-light fill renders true-color images down to 0.1 lux — you see obstacles, not just silhouettes, on unlit yards and night deliveries.

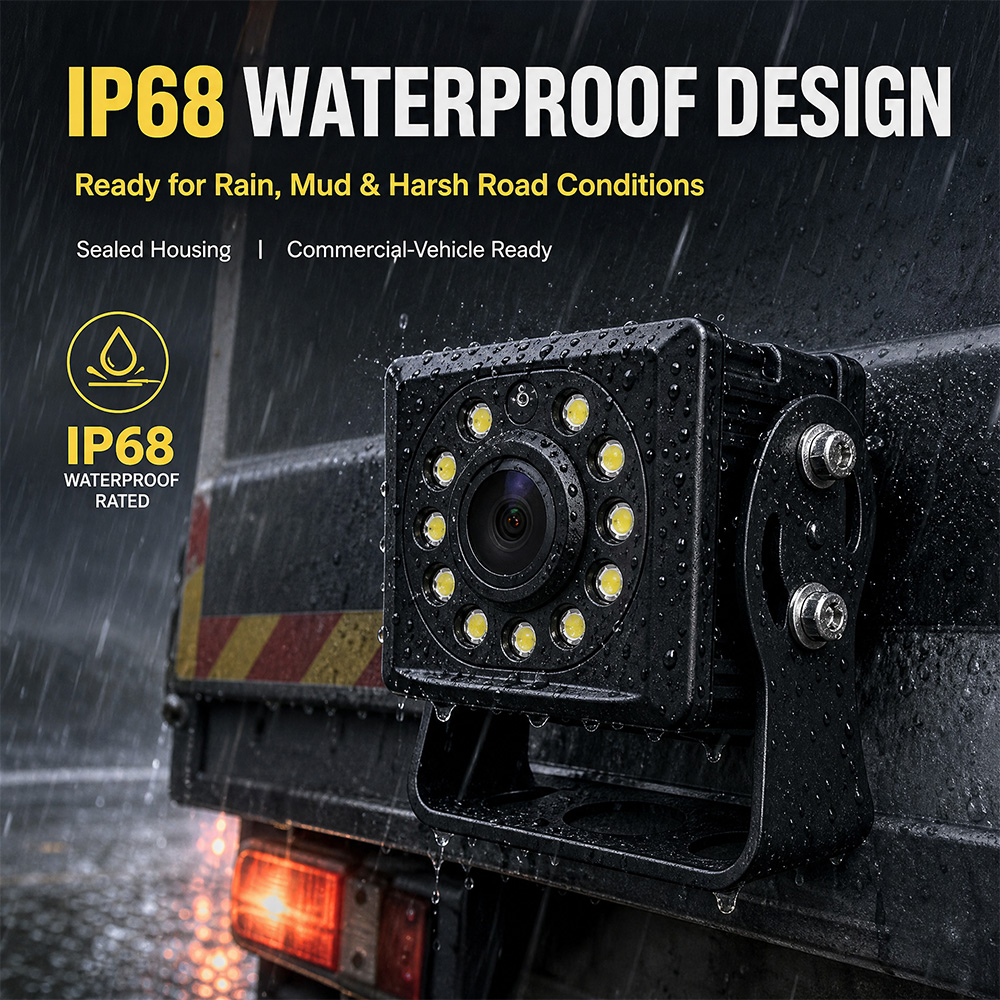

IP68 + extreme temperature

Sealed against rain, wash-down and dust; rated -30°C to 75°C for winter cold starts and summer cab heat. Built for daily commercial punishment.

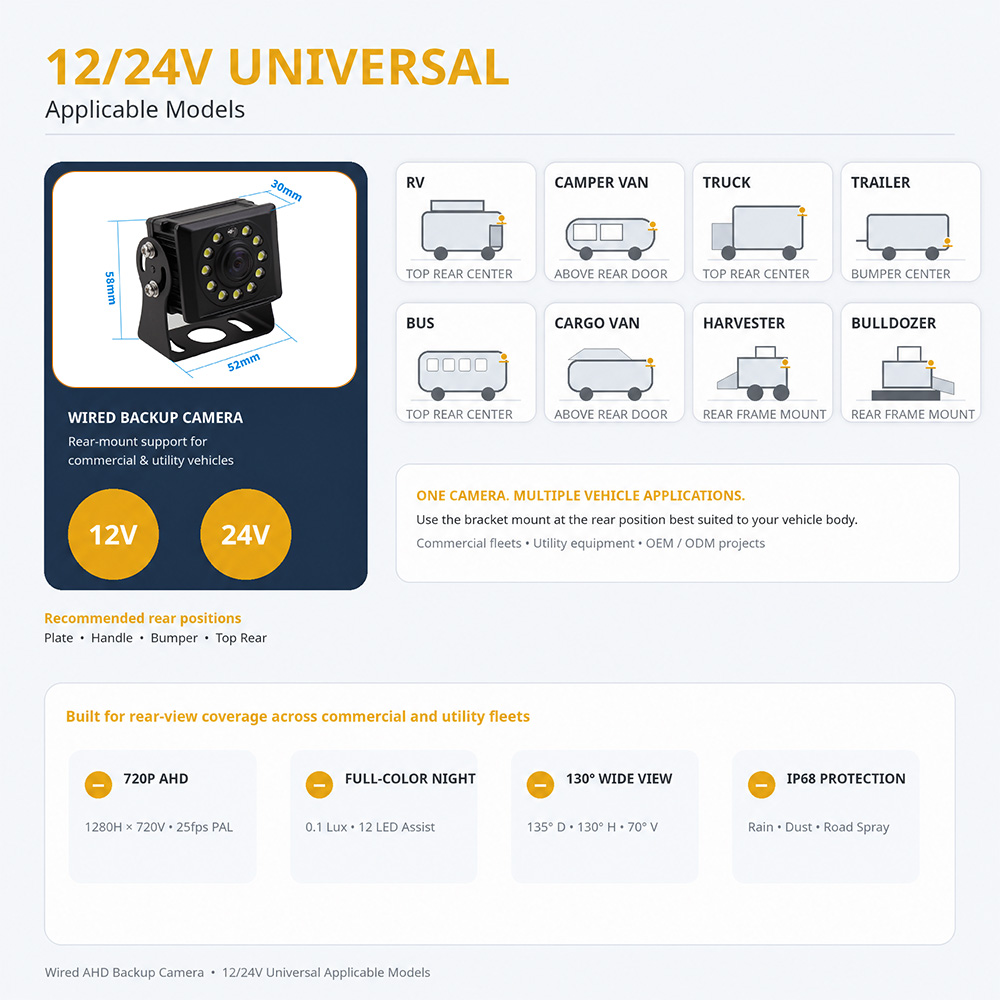

12–24V wide voltage

One camera spans the entire Isuzu line and mixed 12/24V fleets — no separate SKUs, simpler inventory for distributors and upfitters.

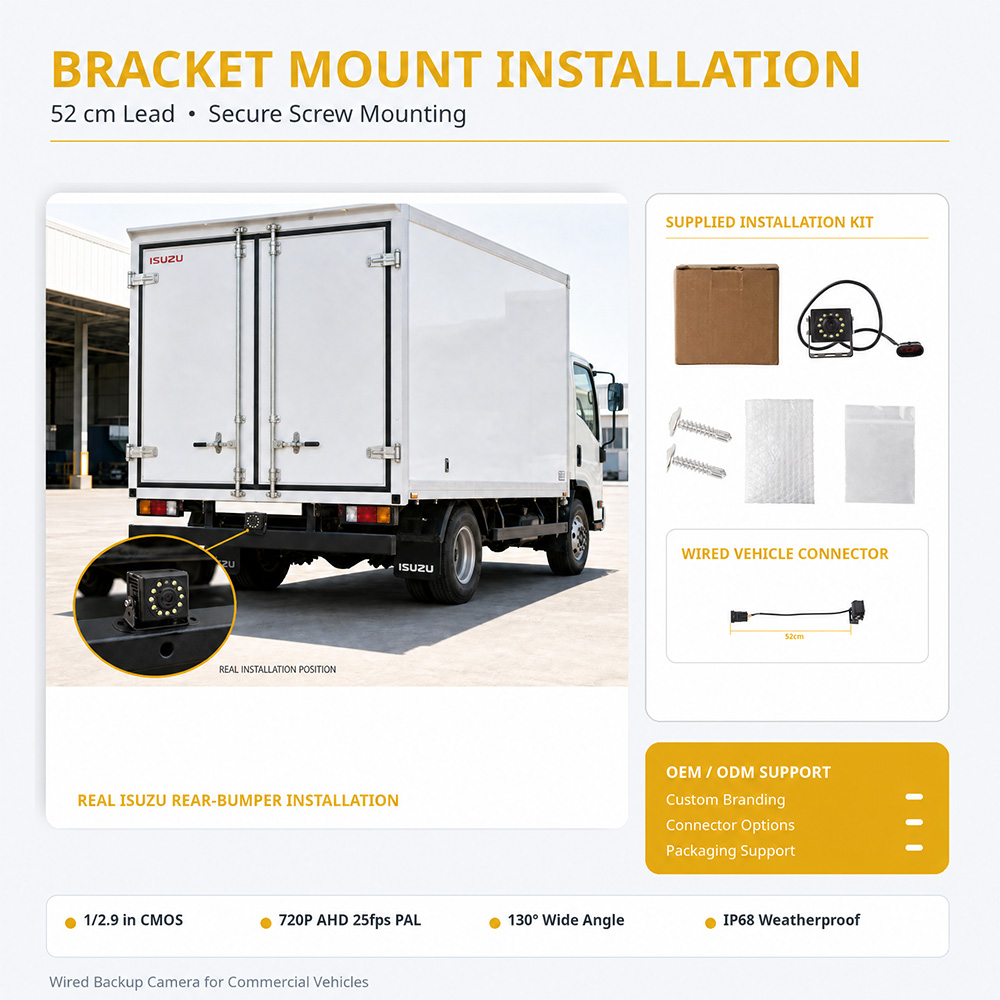

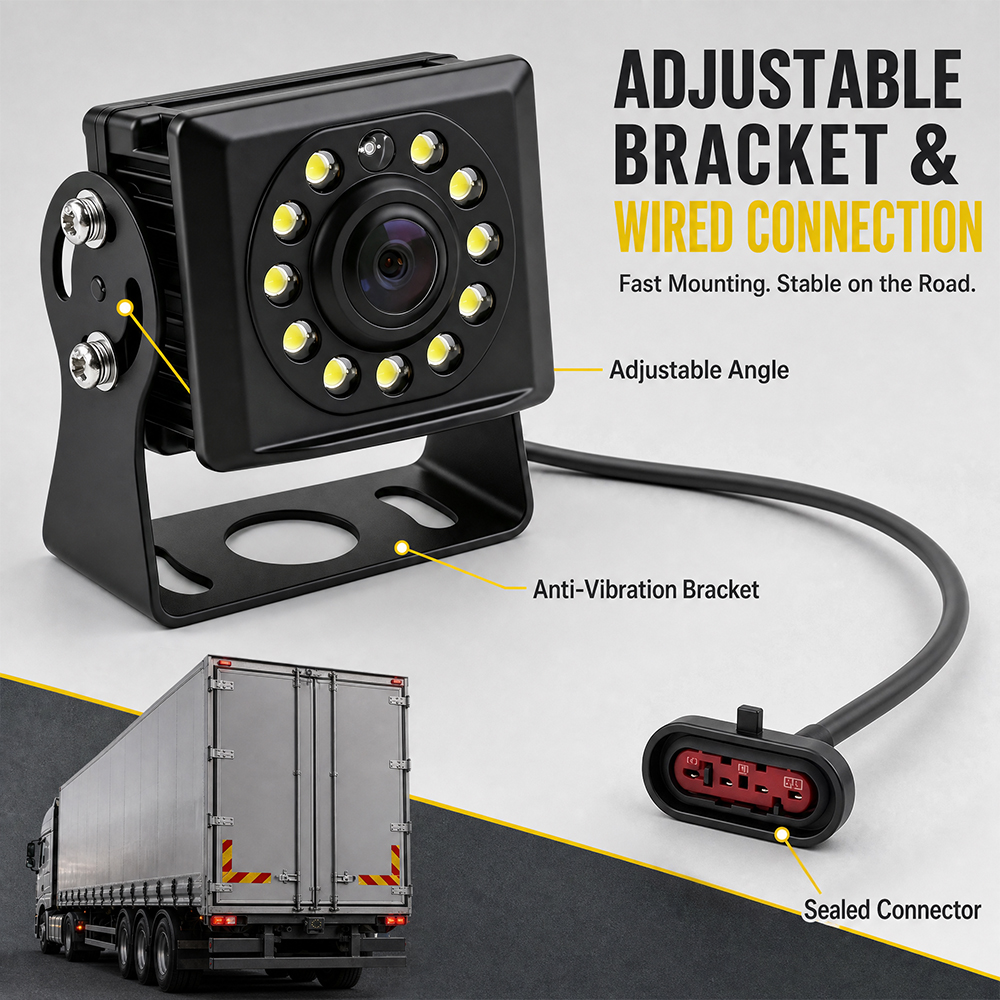

True plug-and-play at the tail

Mirror-image mode + 4-Pin waterproof connector + bracket mount = fast, reliable install at the rear, with a 50 cm tail and optional extension harness.

Why Source From Carsoul

An automotive-electronics manufacturer, not a trader.

Shenzhen Carsoul Technology Co., Ltd. — specialist in vehicle cameras, 360° AVM surround-view systems and automotive electronics for global B2B buyers.

Automotive-grade quality system — IATF 16949-aligned processes across engineering, production and incoming QC.

Real product compliance — cameras available with CE / FCC / RoHS as required by market.

Proven 360° & camera expertise — development programs delivered for ISUZU D-MAX, Honda WR-V, Suzuki and more.

OEM / ODM flexibility — model, connector, cable length, logo, housing color and packaging all customizable.

Contact Us

Feature	Carsoul 06A96 (AHD 720P)	Traditional CVBS	Generic USB cam
Resolution	1280×720 HD	~480–720 TVL, soft	Varies, PC-only
Night vision	White-light full-color, 0.1 lux	IR B/W only	Unreliable
Waterproof	IP68 sealed	Limited	Not rated
Voltage	12–24V wide	Usually 12V only	5V, needs converter
Wide-angle	130° H / 135° D	Narrow	Narrow
Signal stability	Digital AHD, no bleed	Analog fog/bleed	App-dependent
Truck fitment	Bracket + 4-Pin WP	Adapters needed	Not for vehicles

Reversing & backup on Isuzu trucks

N-series (NPR / NQR / NNR) and F-series (FTR / FRR / FSR) box trucks, tippers and refrigerated units — confident backing in yards, depots and tight urban drops.

Rear blind-spot & trailer alignment

130° coverage lines up trailers, dollies and loading docks, and watches the rear corners that mirrors miss — cutting clip and collision risk.

Fleet & PDI batch fitment

Logistics, municipal, construction and rental fleets — standardize one rugged camera across mixed 12/24V trucks for simplified spares and training.

Custom fit for other commercial vehicles

Beyond Isuzu: vans, light trucks, buses and special-purpose 12–24V vehicles — contact us for vehicle-specific bracket and harness development.

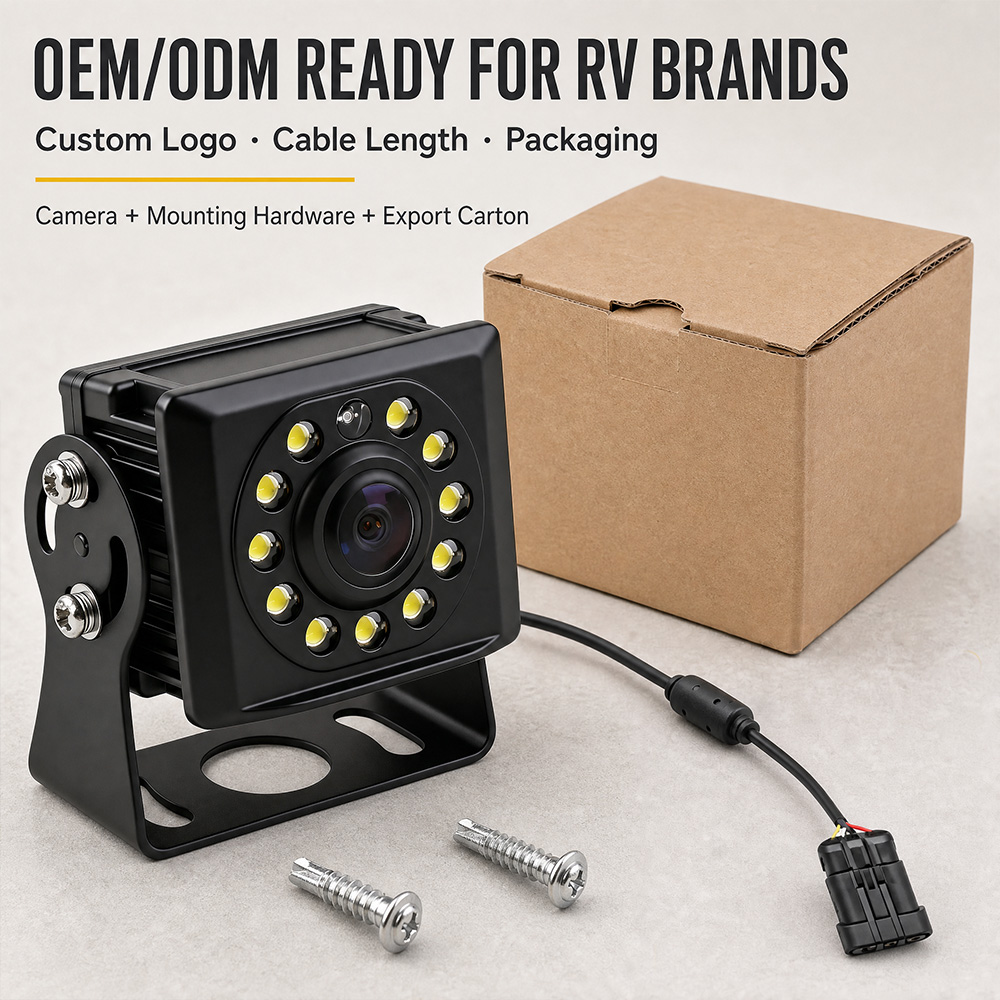

What we customize

Vehicle-specific bracket & harness development per truck model

Connector type & cable length (4-Pin / RCA / custom)

Logo, housing color and retail packaging

Sensor & firmware options to match your monitor ecosystem

Engagement process

Inquiry & requirement — Share vehicle model, monitor type, volume and spec needs.

Sample & drawing — We provide prototype, 2D/3D drawing and validation plan.

Tooling & validation — Bracket/harness tooling, environmental and signal tests.

Mass production & QC — Line build with incoming/outgoing inspection.

Shipping & support — Logistics, docs and after-sales technical support.

Contact Us

Quality & Certifications

Factory Certifications: IATF 16949 & ISO 9001 automotive quality management system.
Product Certifications: CE / FCC / RoHS supported on this camera (IATF 16949 / ISO 9001 factory-level).
Reliability: IP67 waterproof, -20~+70℃ wide temperature, ABS+metal housing, EMC considered.
Warranty: Front-fit / OEM projects 3 years; aftermarket projects 1 year (excludes external force, abuse, unauthorized modification).
Track Record: Rear cameras and 360° AVM delivered for Suzuki Jimny, ISUZU D-MAX, Honda City / HR-V / WR-V — proof of vehicle-specific delivery.

Need a rear camera for another model? We develop vehicle-specific cameras and 360° AVM for sedans, SUVs, pickups, vans and buses. Talk to our engineering team today.

Contact Us

FAQ

Q: What’s your MOQ? Do you accept trial orders?

A: Small trial orders are welcome to reduce your market testing risk. We offer tiered pricing for bulk orders. Specific MOQ is available upon inquiry.

Q: Can I get samples for testing? How about sample cost?

A: We support sample orders; the function and quality of samples are consistent with bulk orders. The sample fee can be deducted from future bulk orders.

Q: Do your products have export certifications?

A: All products have CE, FCC, RoHS certifications. We provide certificates for customs clearance in Europe, America, Middle East, Southeast Asia, etc.

Q: What’s your purchasing process?

A: Confirm demand → Quotation → Sample / Contract → Deposit → Production & Inspection → Shipment → Balance → Technical support.

Q: What payment and trade terms do you accept?

A: Payment: T/T, L/C, PayPal. Trade terms: EXW, FOB, CIF, DDP. Sea, air and express shipping are available.

Q: Do you provide technical and installation support?

A: We offer detailed wiring diagrams, manuals and installation guidance. Remote technical support is also available.

Q: How do you control quality and after-sales?

A: Full inspection during production; test videos/reports before shipment. For non-artificial quality issues, we offer replacement, re-supply or reasonable compensation.
